12x14m Outdoor Custom Aluminum Portable Church Stage 2020

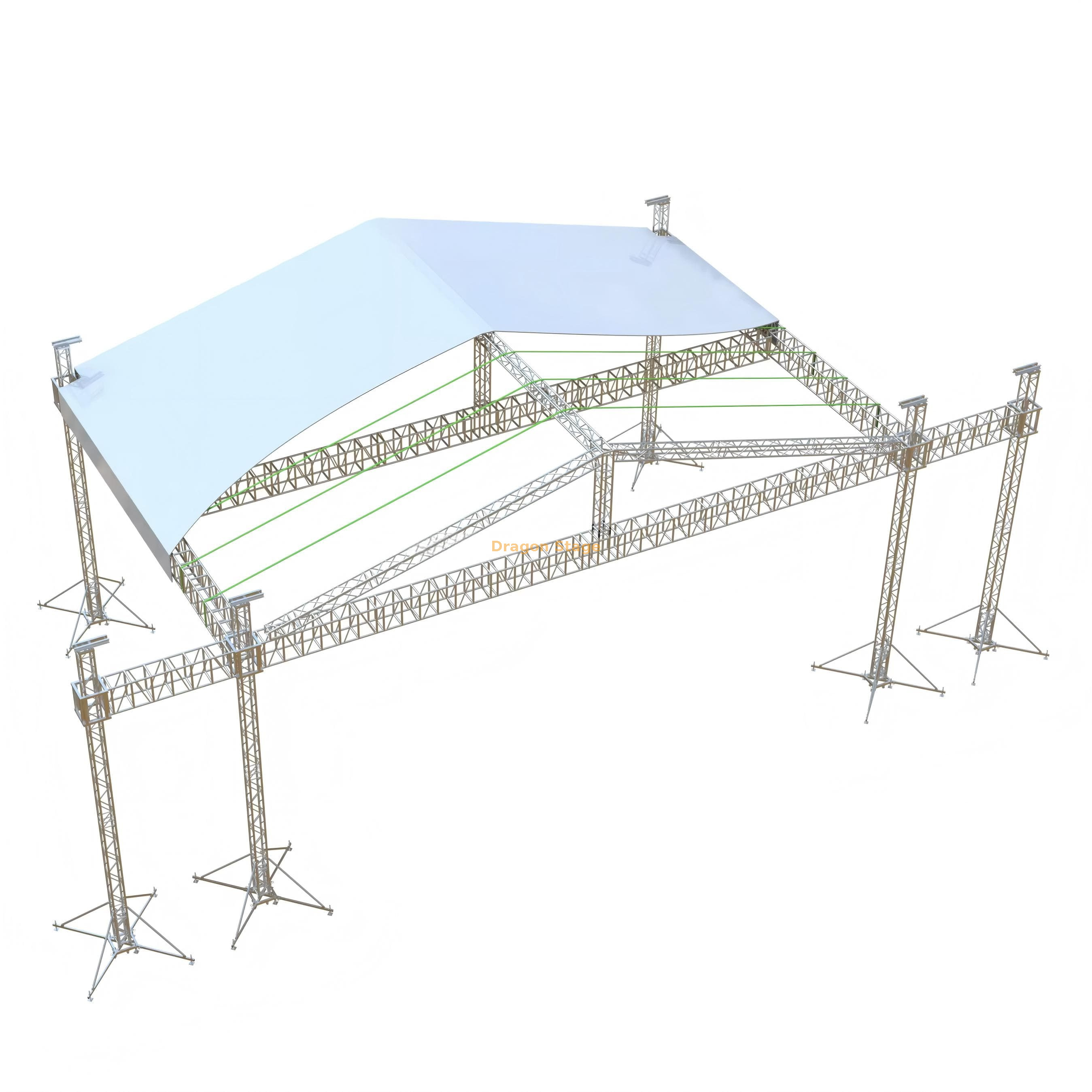

the truss system is 12x14m,height is 8m, 2 wings, each is 3m, with roof canopy;
packing volume: 24cbm
packing weight: 2550kg
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 14.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS389×389 | 12 pcs |
| 2.00 m | 50×3.0 | CS389×389 | 3 pcs |
| 1.00 m | 50×3.0 | CS389×389 | pcs |
| 12.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8 pcs |
| 2.00 m | 50×3.0 | CS389×389 | pcs |
| 1.00 m | 50×3.0 | CS389×389 | pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8 pcs |
| 2.00 m | 50×3.0 | CS289×289 | pcs |
| 1.00 m | 50×3.0 | CS289×289 | 4 pcs |
| Frame Tower | Spigot Sleeve Block S | 4 pcs |
| Steel Base S | 4 pcs |
| Top Section S | 4 pcs |
| Manual hoist,BA05 2Tons | 4 pcs |
| Spigot Hinge Section,Height 1m | 4 pcs |
| Fibre sling,BA04,2 tons 3m | 4 pcs |
| Long outrigger | 16 pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 1.40 m | 50×3.0 | CS289×289 | 3 pcs |
| 12.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 4 pcs |
| 2.00 m | 50×3.0 | CS289×289 | pcs |
| 1.00 m | 50×3.0 | CS289×289 | pcs |
| 7.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4 pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4 pcs |
| 2.20 m | 50×3.0 | CS289×289 | 4 pcs |
| 7.20 m Ladder truss | 10 sets | 3.00 m | 50×3.0 | CL30,289*50 | 10 pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 10 pcs |
| 2.20 m | 50×3.0 | CL30,289*50 | 10 pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2 pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 1 pcs |
| Connect plate with clamp | 3 pcs |
| Single clamp | 20 pcs |
| Double clamp | 8 pcs |
| roof canopy material:pvc, Blue Colour or customized. | 274.96 | 1 pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 3.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 2 pcs |
| 2.00 m | 50×3.0 | CS389×389 | pcs |
| 1.00 m | 50×3.0 | CS389×389 | pcs |
| 7.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4 pcs |
| 2.00 m | 50×3.0 | CS289×289 | pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2 pcs |
| Wings Tower | Spigot Sleeve Block S | 2 pcs |
| Steel Base S | 2 pcs |
| Top Section S | 2 pcs |
| Manual hoist,BA05 2Tons | 2 pcs |
| Spigot Hinge Section,Height 1m | 2 pcs |
| Fibre sling,BA04,2 tons 3m | 2 pcs |
| Long outrigger | 8 pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
the wooden deck modular stage is 12.2x10.98m,1.2-2m high with 2 stairs
packing volume: 18cbm
packing weight: 2800kg
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 45 pcs |
| 1.22m stage brace | 54 pcs |
| 2.44m stage brace | 50 pcs |
| stand with extendable tube | 60 pcs |
| Stage adjustable base | 60 pcs |
| Stage Stair | wooden topping | total | 7 | steps | 2 pcs |
