Dragon Stage
packing weight: 1350kg
packing volume: 10cbm

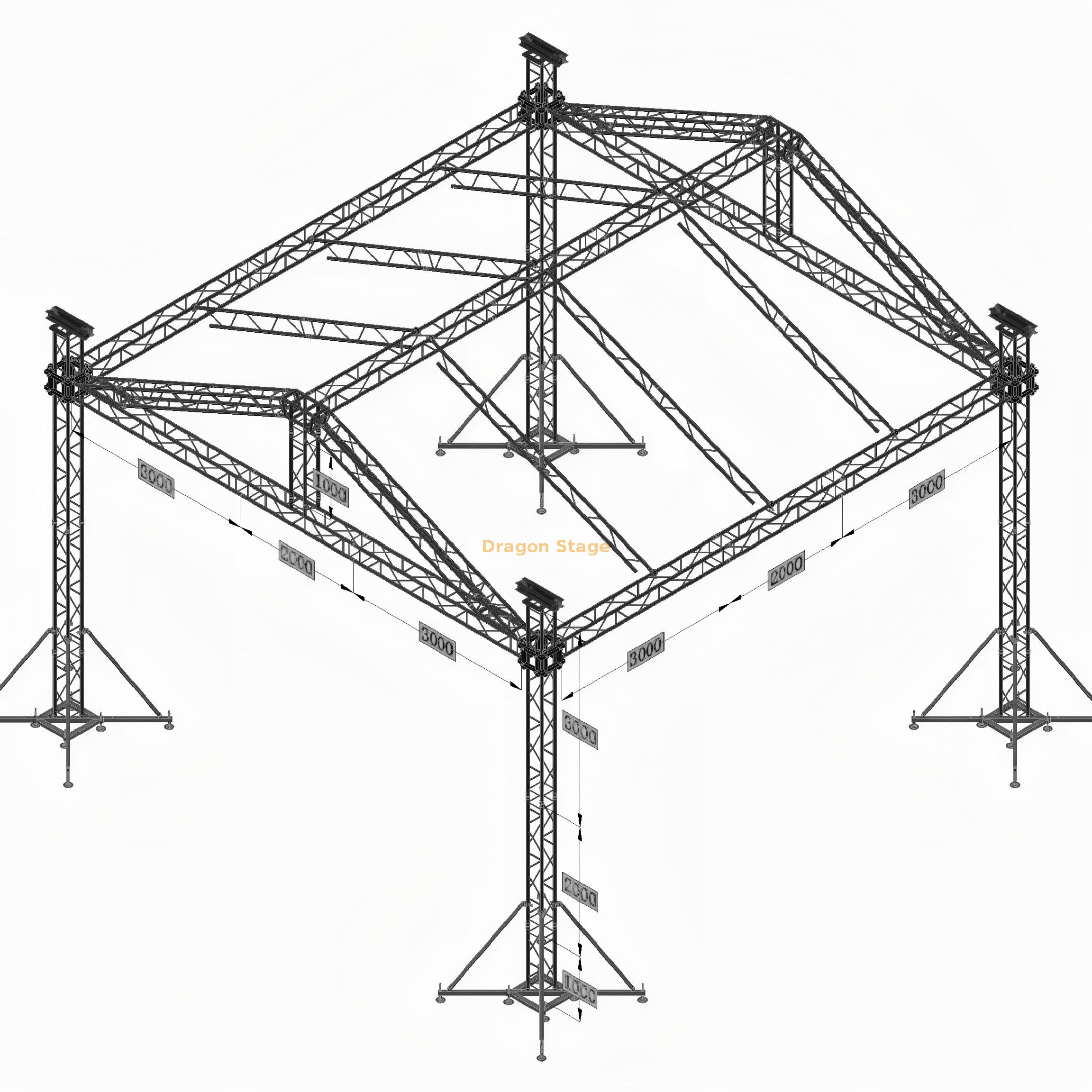

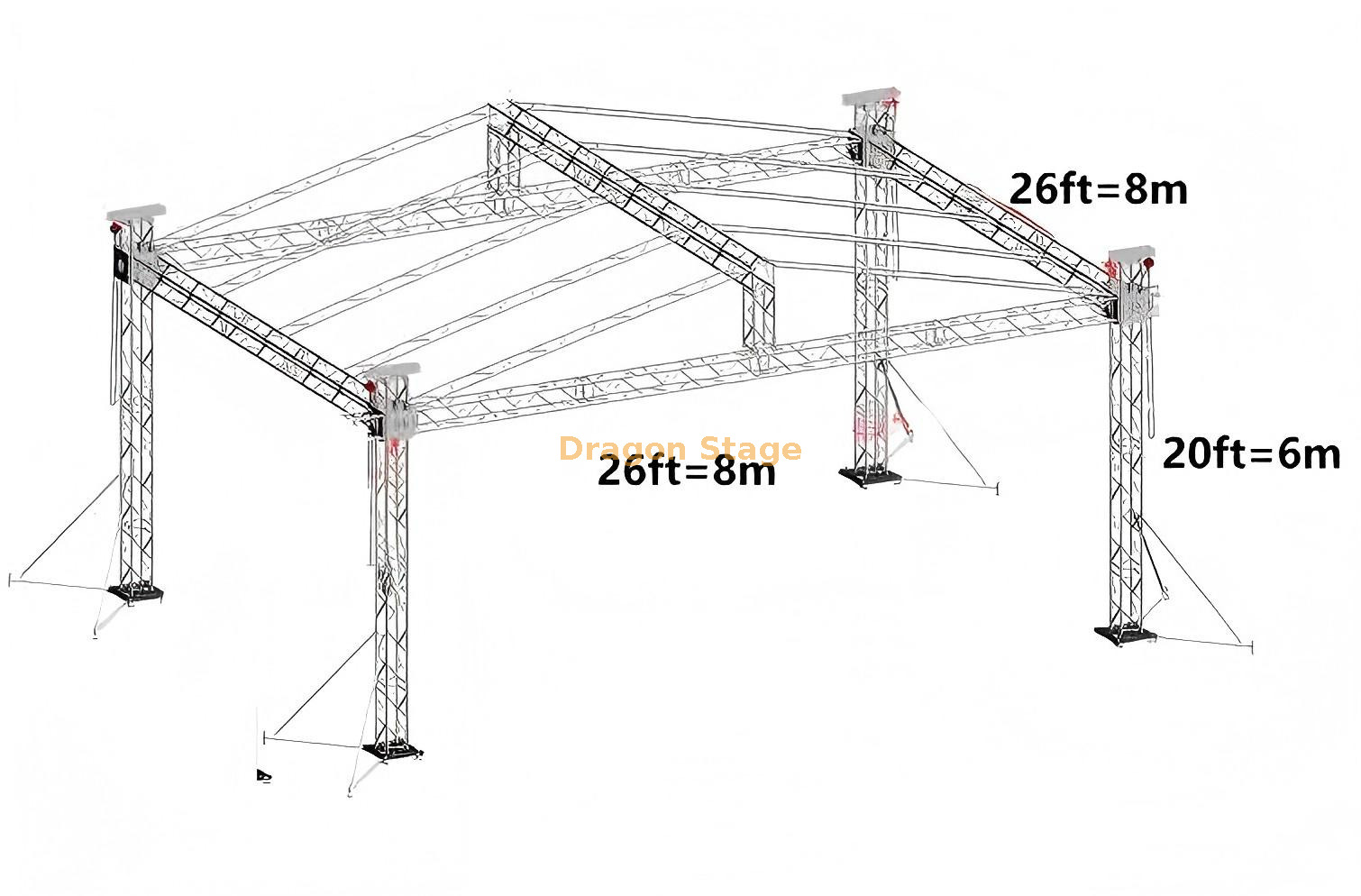

Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
8.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 2pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 2pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
beam cube | Spigotcube 289x289 | 0pcs | ||||||
Frame Tower | Spigot Sleeve Block S | 4pcs | ||||||
Steel Base S | 4pcs | |||||||
Top Section S | 4pcs | |||||||
Manual hoist,BA05 2Tons | 4pcs | |||||||
Spigot Hinge Section,Height 1m | 4pcs | |||||||
Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
Long outrigger | 16pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 2 sets | .80 m | 50×3.0 | CS289×289 | 2pcs | |||
8.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
2.00 m | 50×3.0 | CS289×289 | 1pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
4.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.20 m | 50×3.0 | CS289×289 | 4pcs | |||||
4.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||
2.00 m | 50×3.0 | CL30,289*50 | 0pcs | |||||
1.20 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
Connect plate with clamp | 2pcs | |||||||
Single clamp | 12pcs | |||||||
Double clamp | 8pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 124.96 | 1pcs |
Benefits of Aluminum Truss:
Lightweight and Durable: Aluminum is a lightweight material that offers excellent strength-to-weight ratio. This makes it easy to transport and assemble the truss structure, while ensuring its stability and longevity.
Versatile and Customizable: The modular design of the truss allows for easy customization to fit the specific needs of the event. It can be easily extended or modified to accommodate different stage sizes, lighting configurations, and event layouts.
Cost-Effective: Compared to traditional roofing materials, aluminum truss is a more cost-effective option. Its lightweight nature reduces transportation and labor costs, while its durability ensures long-term use and minimizes replacement expenses.
Aesthetically Appealing: The sleek and modern design of the aluminum truss adds a touch of sophistication to the event space. It can be further enhanced with lighting and decorative elements to create a visually stunning ambiance.
Considerations for Implementation:
Safety: Ensuring the structural integrity of the truss is paramount. Proper installation and regular inspections are crucial to guarantee the safety of attendees and equipment.
Weather Conditions: The truss structure should be designed to withstand wind loads and other weather conditions specific to the event location.
Lighting and Sound Integration: The truss provides a convenient platform for mounting lighting fixtures and sound equipment. Careful planning and integration are essential to achieve optimal lighting and sound effects.
Logistics and Assembly: The size and weight of the truss structure require proper planning for transportation and assembly. Hiring experienced professionals for installation is recommended to ensure a smooth and safe process.
Conclusion:
An aluminum lighting square truss roofing truss structure offers a practical and aesthetically pleasing solution for event party organizers. Its lightweight, durable, and customizable nature provides numerous benefits, while careful consideration of safety, weather conditions, and logistics ensures a successful and memorable event.
packing weight: 1350kg
packing volume: 10cbm
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
8.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 2pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 2pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
beam cube | Spigotcube 289x289 | 0pcs | ||||||
Frame Tower | Spigot Sleeve Block S | 4pcs | ||||||
Steel Base S | 4pcs | |||||||
Top Section S | 4pcs | |||||||
Manual hoist,BA05 2Tons | 4pcs | |||||||
Spigot Hinge Section,Height 1m | 4pcs | |||||||
Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
Long outrigger | 16pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 2 sets | .80 m | 50×3.0 | CS289×289 | 2pcs | |||
8.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
2.00 m | 50×3.0 | CS289×289 | 1pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
4.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.20 m | 50×3.0 | CS289×289 | 4pcs | |||||
4.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||
2.00 m | 50×3.0 | CL30,289*50 | 0pcs | |||||
1.20 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
Connect plate with clamp | 2pcs | |||||||
Single clamp | 12pcs | |||||||
Double clamp | 8pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 124.96 | 1pcs |
Benefits of Aluminum Truss:
Lightweight and Durable: Aluminum is a lightweight material that offers excellent strength-to-weight ratio. This makes it easy to transport and assemble the truss structure, while ensuring its stability and longevity.
Versatile and Customizable: The modular design of the truss allows for easy customization to fit the specific needs of the event. It can be easily extended or modified to accommodate different stage sizes, lighting configurations, and event layouts.
Cost-Effective: Compared to traditional roofing materials, aluminum truss is a more cost-effective option. Its lightweight nature reduces transportation and labor costs, while its durability ensures long-term use and minimizes replacement expenses.
Aesthetically Appealing: The sleek and modern design of the aluminum truss adds a touch of sophistication to the event space. It can be further enhanced with lighting and decorative elements to create a visually stunning ambiance.
Considerations for Implementation:
Safety: Ensuring the structural integrity of the truss is paramount. Proper installation and regular inspections are crucial to guarantee the safety of attendees and equipment.
Weather Conditions: The truss structure should be designed to withstand wind loads and other weather conditions specific to the event location.
Lighting and Sound Integration: The truss provides a convenient platform for mounting lighting fixtures and sound equipment. Careful planning and integration are essential to achieve optimal lighting and sound effects.
Logistics and Assembly: The size and weight of the truss structure require proper planning for transportation and assembly. Hiring experienced professionals for installation is recommended to ensure a smooth and safe process.
Conclusion:
An aluminum lighting square truss roofing truss structure offers a practical and aesthetically pleasing solution for event party organizers. Its lightweight, durable, and customizable nature provides numerous benefits, while careful consideration of safety, weather conditions, and logistics ensures a successful and memorable event.
