Dragon Stage
packing weight: 1600kg
packing volume: 14cbm
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs | |||
2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs | |||
2.00 m | 50×3.0 | CS389×389 | 2pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
beam cube | Spigot cube 389x389 | 0pcs | ||||||
Frame Tower | Spigot Sleeve Block S | 4pcs | ||||||
Steel Base S | 4pcs | |||||||
Top Section S | 4pcs | |||||||
Manual hoist,BA05 2Tons | 4pcs | |||||||
Spigot Hinge Section,Height 1m | 4pcs | |||||||
Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
Long outrigger | 16pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 2 sets | 1.20 m | 50×3.0 | CS289×289 | 2pcs | |||
8.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
2.00 m | 50×3.0 | CS289×289 | 1pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
1.20 m | 50×3.0 | CS289×289 | 4pcs | |||||
6.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||
2.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
1.20 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
Connect plate with clamp | 2pcs | |||||||
Single clamp | 12pcs | |||||||
Double clamp | 8pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 179.36 | 1pcs |
packing weight: 1800kg
packing volume: 11cbm
Item | Specification | Quantity | ||||||
Aluminium assembly stage | topping: 4x8ft (1.22x2.44m) | wooden | 27 pcs | |||||
1.22m stage brace | 36 pcs | |||||||
2.44m stage brace | 30 pcs | |||||||
stand with extendable tube | 40 pcs | |||||||
Stage adjustable base | 40 pcs | |||||||
Stage Stair | wooden topping | total | 8 | steps | adjustable to the stage height | 2 pcs |

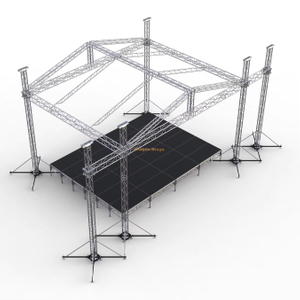

The Aluminum Outdoor Event Concert Roof Stage is a truss-based structure that provides a sturdy and reliable support system for outdoor events and concerts. This roof stage is made from high-strength aluminum alloy and features a unique screw design that ensures a secure and stable connection between truss sections. With a size of 12x8x6m, the Aluminum Outdoor Event Concert Roof Stage provides ample space for performers and equipment, while also offering protection from the elements. This roof stage is easy to assemble and disassemble, making it an ideal choice for outdoor events and installations. Its high-strength construction ensures that it can withstand the rigors of frequent use and provide a reliable and sturdy support system for your music and audio equipment.
packing weight: 1600kg
packing volume: 14cbm
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs | |||
2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs | |||
2.00 m | 50×3.0 | CS389×389 | 2pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
beam cube | Spigot cube 389x389 | 0pcs | ||||||
Frame Tower | Spigot Sleeve Block S | 4pcs | ||||||
Steel Base S | 4pcs | |||||||
Top Section S | 4pcs | |||||||
Manual hoist,BA05 2Tons | 4pcs | |||||||
Spigot Hinge Section,Height 1m | 4pcs | |||||||
Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
Long outrigger | 16pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 2 sets | 1.20 m | 50×3.0 | CS289×289 | 2pcs | |||
8.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
2.00 m | 50×3.0 | CS289×289 | 1pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
1.20 m | 50×3.0 | CS289×289 | 4pcs | |||||
6.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||
2.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
1.20 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
Connect plate with clamp | 2pcs | |||||||
Single clamp | 12pcs | |||||||
Double clamp | 8pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 179.36 | 1pcs |
packing weight: 1800kg
packing volume: 11cbm
Item | Specification | Quantity | ||||||
Aluminium assembly stage | topping: 4x8ft (1.22x2.44m) | wooden | 27 pcs | |||||
1.22m stage brace | 36 pcs | |||||||
2.44m stage brace | 30 pcs | |||||||
stand with extendable tube | 40 pcs | |||||||
Stage adjustable base | 40 pcs | |||||||
Stage Stair | wooden topping | total | 8 | steps | adjustable to the stage height | 2 pcs |
The Aluminum Outdoor Event Concert Roof Stage is a truss-based structure that provides a sturdy and reliable support system for outdoor events and concerts. This roof stage is made from high-strength aluminum alloy and features a unique screw design that ensures a secure and stable connection between truss sections. With a size of 12x8x6m, the Aluminum Outdoor Event Concert Roof Stage provides ample space for performers and equipment, while also offering protection from the elements. This roof stage is easy to assemble and disassemble, making it an ideal choice for outdoor events and installations. Its high-strength construction ensures that it can withstand the rigors of frequent use and provide a reliable and sturdy support system for your music and audio equipment.
