DRAGON STAGE
packing weight: 1750kg
packing volume: 18.5cbm
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 8pcs | |||
2.00 m | 50×3.0 | BS400×400 | 0pcs | |||||
1.00 m | 50×3.0 | BS400×400 | 0pcs | |||||
9.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 6pcs | |||
2.00 m | 50×3.0 | BS400×400 | 0pcs | |||||
1.00 m | 50×3.0 | BS400×400 | 0pcs | |||||
8.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | BS400×400 | 8pcs | |||
2.00 m | 50×3.0 | BS400×400 | 4pcs | |||||
1.00 m | 50×3.0 | BS400×400 | 0pcs | |||||
beam cube | cube 400x400 | 0pcs | ||||||
Frame Tower | Bolt Truss Sleeve Block S | 4pcs | ||||||
Steel Base S | 4pcs | |||||||
Top Section S | 4pcs | |||||||
Manual hoist,BA05 2Tons | 4pcs | |||||||
Spigot Hinge Section,Height 1m | 4pcs | |||||||
Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
Long outrigger | 16pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 2 sets | 1.20 m | 50×3.0 | BS300×300 | 2pcs | |||
9.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | BS300×300 | 3pcs | |||
2.00 m | 50×3.0 | BS300×300 | 0pcs | |||||
1.00 m | 50×3.0 | BS300×300 | 0pcs | |||||
6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | BS300×300 | 4pcs | |||
2.00 m | 50×3.0 | BS300×300 | 4pcs | |||||
1.20 m | 50×3.0 | BS300×300 | 4pcs | |||||
6.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | BL30,300*50 | 8pcs | |||
2.00 m | 50×3.0 | BL30,300*50 | 8pcs | |||||
1.20 m | 50×3.0 | BL30,300*50 | 8pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | BS300×300 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | BS300×300 | 0pcs | ||||||
Connect plate with clamp | 2pcs | |||||||
Single clamp | 16pcs | |||||||
Double clamp | 8pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 194.16 | 1pcs |

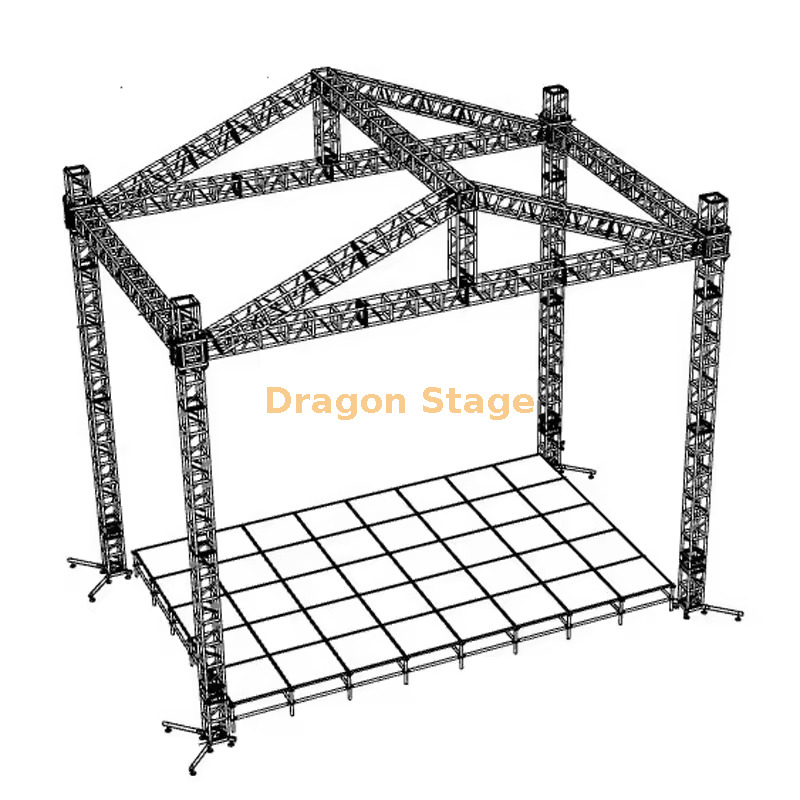

An aluminum outdoor roof truss structure is a framework made of aluminum truss components that is specifically designed for outdoor applications, such as outdoor events, concerts, festivals, trade shows, or temporary structures. It provides a stable and durable support system for various types of roofing or overhead installations in open-air environments.
Here are some key features and considerations regarding aluminum outdoor roof truss structures:
Aluminum Truss Components: The structure is constructed using aluminum truss components, which are lightweight yet strong and durable. Aluminum trusses are known for their high strength-to-weight ratio, corrosion resistance, and ease of assembly.
Modular Design: Aluminum truss structures typically feature a modular design, allowing for easy assembly and disassembly. The truss components can be connected together using specialized connectors or bolts, creating a customizable and adaptable framework that can accommodate different sizes and configurations.
Outdoor Durability: Aluminum is well-suited for outdoor use due to its resistance to corrosion and weather elements. Anodized or powder-coated finishes can be applied to the aluminum truss components to provide additional protection against environmental factors such as UV rays, moisture, and temperature variations.
Roofing Options: The aluminum truss structure serves as the support system for various types of roofing materials. These can include fabric canopies, PVC or vinyl covers, polycarbonate sheets, or even custom-made structures such as LED screens or lighting rigs. The choice of roofing material depends on the specific requirements of the event or installation.
Rigging and Safety Considerations: Aluminum truss structures often incorporate rigging points or attachment points to secure lighting fixtures, speakers, banners, or other equipment. Safety is a crucial aspect, and the truss structure should be engineered to meet safety standards and regulations. Trained professionals should handle the rigging and ensure proper weight distribution and secure attachments.
Transportability and Portability: Aluminum truss structures are designed for easy transportation and portability. The truss components can be disassembled and packed into compact sizes, facilitating convenient transportation to different event locations. Some truss systems may come with specialized cases or transport carts to simplify the logistics.
Customization and Accessories: Aluminum truss structures offer customization options to cater to specific event requirements. Various accessories such as corner blocks, base plates, and spigot connectors are available to enhance the structure's stability and functionality. Additionally, branded graphics or banners can be attached to the truss structure for promotional purposes.
packing weight: 1750kg
packing volume: 18.5cbm
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 8pcs | |||
2.00 m | 50×3.0 | BS400×400 | 0pcs | |||||
1.00 m | 50×3.0 | BS400×400 | 0pcs | |||||
9.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 6pcs | |||
2.00 m | 50×3.0 | BS400×400 | 0pcs | |||||
1.00 m | 50×3.0 | BS400×400 | 0pcs | |||||
8.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | BS400×400 | 8pcs | |||
2.00 m | 50×3.0 | BS400×400 | 4pcs | |||||
1.00 m | 50×3.0 | BS400×400 | 0pcs | |||||
beam cube | cube 400x400 | 0pcs | ||||||
Frame Tower | Bolt Truss Sleeve Block S | 4pcs | ||||||
Steel Base S | 4pcs | |||||||
Top Section S | 4pcs | |||||||
Manual hoist,BA05 2Tons | 4pcs | |||||||
Spigot Hinge Section,Height 1m | 4pcs | |||||||
Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
Long outrigger | 16pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 2 sets | 1.20 m | 50×3.0 | BS300×300 | 2pcs | |||
9.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | BS300×300 | 3pcs | |||
2.00 m | 50×3.0 | BS300×300 | 0pcs | |||||
1.00 m | 50×3.0 | BS300×300 | 0pcs | |||||
6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | BS300×300 | 4pcs | |||
2.00 m | 50×3.0 | BS300×300 | 4pcs | |||||
1.20 m | 50×3.0 | BS300×300 | 4pcs | |||||
6.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | BL30,300*50 | 8pcs | |||
2.00 m | 50×3.0 | BL30,300*50 | 8pcs | |||||
1.20 m | 50×3.0 | BL30,300*50 | 8pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | BS300×300 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | BS300×300 | 0pcs | ||||||
Connect plate with clamp | 2pcs | |||||||
Single clamp | 16pcs | |||||||
Double clamp | 8pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 194.16 | 1pcs |
An aluminum outdoor roof truss structure is a framework made of aluminum truss components that is specifically designed for outdoor applications, such as outdoor events, concerts, festivals, trade shows, or temporary structures. It provides a stable and durable support system for various types of roofing or overhead installations in open-air environments.
Here are some key features and considerations regarding aluminum outdoor roof truss structures:
Aluminum Truss Components: The structure is constructed using aluminum truss components, which are lightweight yet strong and durable. Aluminum trusses are known for their high strength-to-weight ratio, corrosion resistance, and ease of assembly.
Modular Design: Aluminum truss structures typically feature a modular design, allowing for easy assembly and disassembly. The truss components can be connected together using specialized connectors or bolts, creating a customizable and adaptable framework that can accommodate different sizes and configurations.
Outdoor Durability: Aluminum is well-suited for outdoor use due to its resistance to corrosion and weather elements. Anodized or powder-coated finishes can be applied to the aluminum truss components to provide additional protection against environmental factors such as UV rays, moisture, and temperature variations.
Roofing Options: The aluminum truss structure serves as the support system for various types of roofing materials. These can include fabric canopies, PVC or vinyl covers, polycarbonate sheets, or even custom-made structures such as LED screens or lighting rigs. The choice of roofing material depends on the specific requirements of the event or installation.
Rigging and Safety Considerations: Aluminum truss structures often incorporate rigging points or attachment points to secure lighting fixtures, speakers, banners, or other equipment. Safety is a crucial aspect, and the truss structure should be engineered to meet safety standards and regulations. Trained professionals should handle the rigging and ensure proper weight distribution and secure attachments.
Transportability and Portability: Aluminum truss structures are designed for easy transportation and portability. The truss components can be disassembled and packed into compact sizes, facilitating convenient transportation to different event locations. Some truss systems may come with specialized cases or transport carts to simplify the logistics.
Customization and Accessories: Aluminum truss structures offer customization options to cater to specific event requirements. Various accessories such as corner blocks, base plates, and spigot connectors are available to enhance the structure's stability and functionality. Additionally, branded graphics or banners can be attached to the truss structure for promotional purposes.
