Aluminum Walkway Stage 16x5m with Pitched Roof Truss System for Outdoor Event Auditorium

5 0 Reviews
Aluminum Walkway Stage 16x5m height 0.4-0.8m with 2 stairs

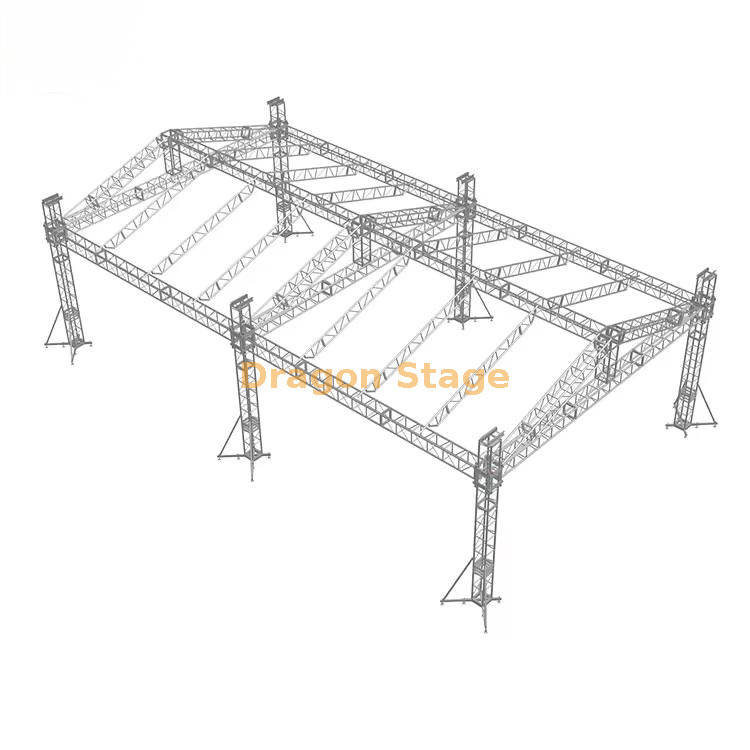

Pitched Roof Truss System for Outdoor Event Auditorium 17x6x6m 6 pillars
Price: 42670  -  74238
Features:
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Dragon Stage

packing weight: 2000kg

packing volume: 15cbm

Item
Specification(squre truss) Qty

length main tube(mm) size(mm)
6.00 m Beam(front) 3 sets 3.00 m 50×3.0 CS289×289 6pcs
2.00 m 50×3.0 CS289×289 0pcs
1.00 m 50×3.0 CS289×289 0pcs
15.00 m Beam(side) 2 sets 3.00 m 50×3.0 CS289×289 10pcs
2.00 m 50×3.0 CS289×289 0pcs
1.00 m 50×3.0 CS289×289 0pcs
5.00 m Pillar 6 sets 3.00 m 50×3.0 CS289×289 6pcs
2.00 m 50×3.0 CS289×289 6pcs
1.00 m 50×3.0 CS289×289 0pcs
Frame Tower Spigot Sleeve Block S 6pcs
Steel Base S 6pcs
Top Section S 6pcs
Manual hoist,BA05 2Tons 6pcs
Spigot Hinge Section,Height 1m 6pcs
Fibre sling,BA04,2 tons 3m 6pcs
Long outrigger 24pcs
Item
Specification(squre truss) Qty

length main tube(mm) size(mm)
Roof Pillar 3 sets .60 m 50×3.0 CS289×289 3pcs
15.00 m Top Beam 1 sets 3.00 m 50×3.0 CS289×289 5pcs
2.00 m 50×3.0 CS289×289 0pcs
1.00 m 50×3.0 CS289×289 0pcs
3.20 m Oblique Beam 6 sets 3.00 m 50×3.0 CS289×289 0pcs
2.00 m 50×3.0 CS289×289 6pcs
1.20 m 50×3.0 CS289×289 6pcs
3.20 m Ladder truss 12 sets 3.00 m 50×3.0 CL30,289*50 0pcs
2.00 m 50×3.0 CL30,289*50 12pcs
1.20 m 50×3.0 CL30,289*50 12pcs
Roof Components
roof conner 4 ways, use for roof beam truss CS289×289 2pcs

roof conner 5 ways, use for roof beam truss CS289×289 1pcs

Connect plate with clamp 3pcs

Single clamp 24pcs

Double clamp 12pcs

roof canopy material:pvc, Blue Colour or customized. 160.56 1pcs

packing weight: 2150kg

packing volume: 11cbm

Item Specification Quantity
Aluminium assembly stage topping: 1x2m wooden 40 pcs
1m stage brace 45 pcs
2m stage brace 48 pcs
stand with extendable tube 54 pcs
Stage adjustable base 54 pcs
Stage Stair wooden topping total 3 steps 2 pcs

stage platform (1)
