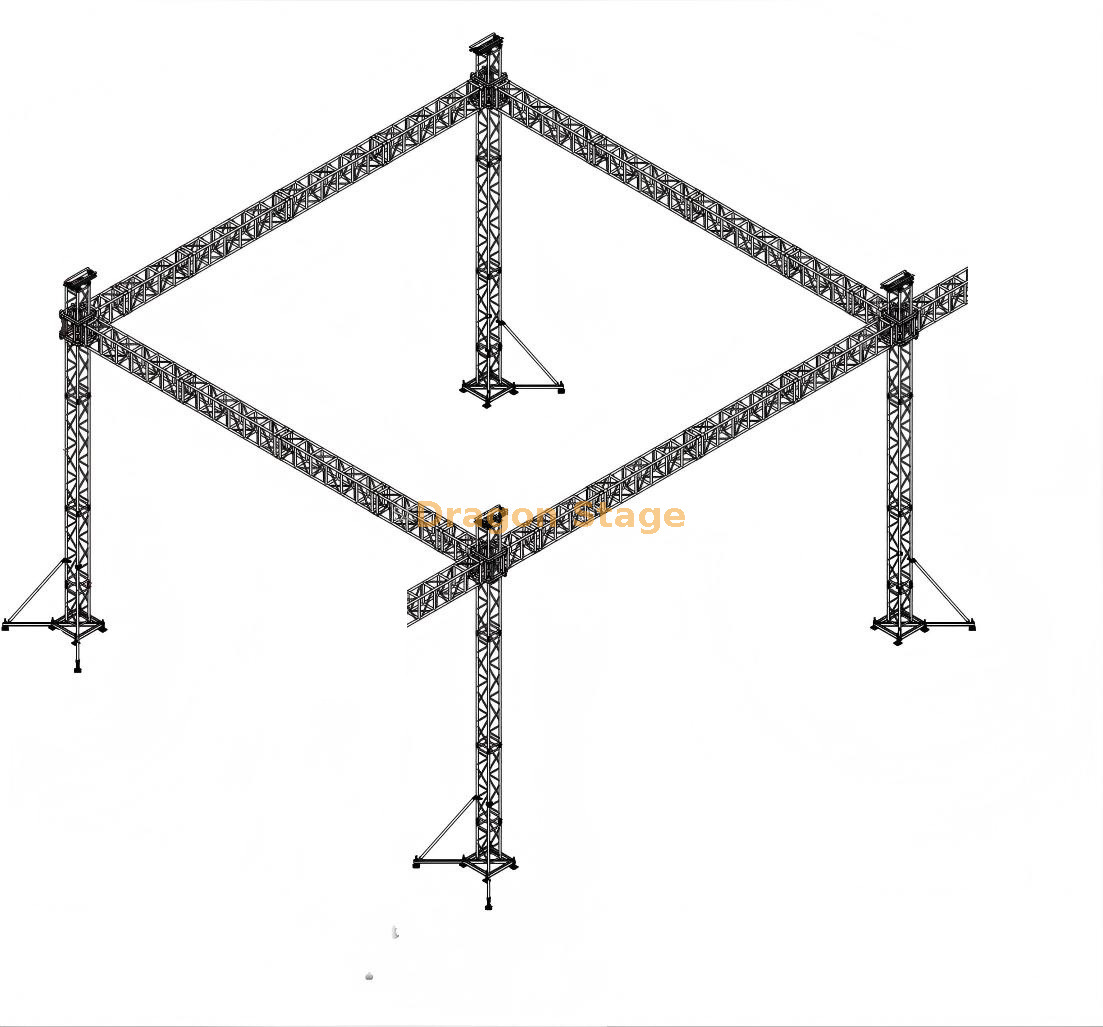

The total size of the speaker truss system, measuring 12 meters in length, 9 meters in width, and 6 meters in height, is crucial for ensuring that the system can support the weight and distribution of the equipment placed upon it.
The length of the speaker truss system, at 12 meters, provides ample space for mounting multiple speakers, lights, and other accessories. This allows for a more comprehensive audio-visual setup, ensuring that the audience can enjoy a fully immersive experience. Additionally, the length of the truss system allows for greater flexibility in positioning equipment, enabling sound engineers and technicians to fine-tune the setup to achieve the best possible sound quality.
The width of the speaker truss system, measuring 9 meters, is equally important as it determines the stability and load-bearing capacity of the system. A wider truss system can support more weight and distribute it more evenly, reducing the risk of structural failure or collapse. This is crucial for ensuring the safety of performers, crew members, and audience members alike.
The height of the speaker truss system, standing at 6 meters, is also significant as it determines the vertical clearance available for mounting equipment. A taller truss system allows for greater flexibility in positioning lights and other accessories, enabling a more dynamic and visually appealing setup. Additionally, the height of the truss system can impact the acoustics of the venue, affecting the dispersion and projection of sound throughout the space.
packing weight；1050kg
packing volume: 10cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 8pcs |
| 2.00 m | 50×3.0 | BS400×400 | 0pcs |
| 1.00 m | 50×3.0 | BS400×400 | 2pcs |
| 9.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 6pcs |
| 2.00 m | 50×3.0 | BS400×400 | 0pcs |
| 1.00 m | 50×3.0 | BS400×400 | 0pcs |
| 5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | BS300×300 | 4pcs |
| 2.00 m | 50×3.0 | BS300×300 | 4pcs |
| 1.00 m | 50×3.0 | BS300×300 | 0pcs |
| beam cube | cube 400x400 | 0pcs |
| Frame Tower | Bolt Truss Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
