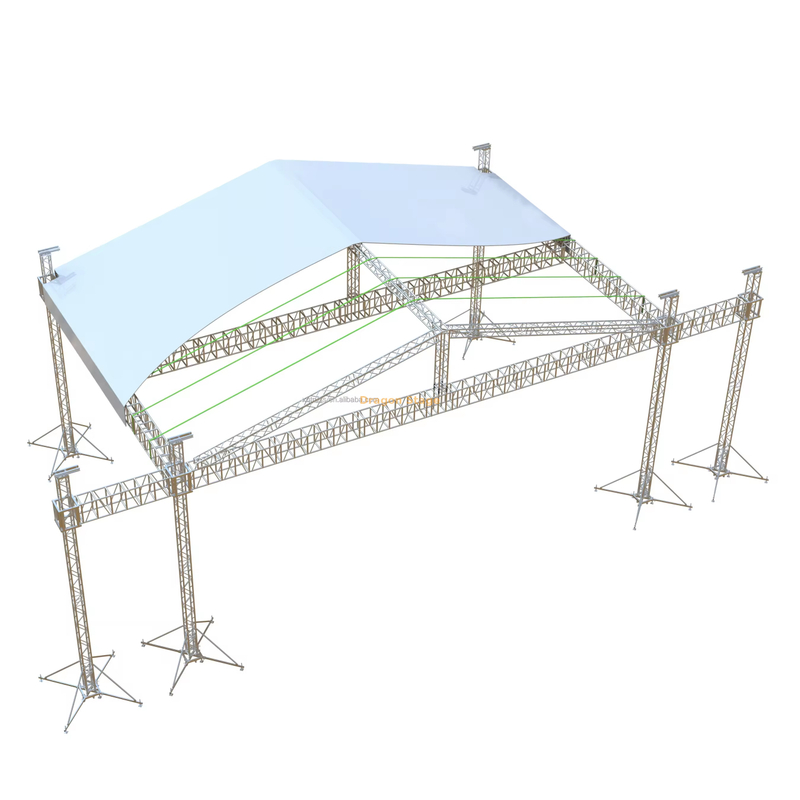

Custom Outdoor Concert Stage Truss Structure with Line Array Wings Tower 20x15x10m

5 0 Reviews

this is a Custom Outdoor Concert Stage Truss Structure with Line Array Wings Tower

its length is 20m, deep15m and 10m high, with 2 line array speaker wings with width 3m

the hoist machine shall be motor with stage platform 19.52x13.42m, 2m high and 2 stairs.

Price: ￥ 120740 - 212902


Features:	roof truss system stage platform
Availability:



Inquire

Brand:
Dragon Stage

Product Description

packing weight: 4700kg

packing volume: 44cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
20.00 m Beam(front)	3 sets	3.00 m	50×4.0	CS520×760	18pcs
		2.00 m	50×4.0	CS520×760	3pcs
		1.00 m	50×4.0	CS520×760	0pcs
15.00 m Beam(side)	2 sets	3.00 m	50×4.0	CS520×760	10pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	0pcs
9.00 m Pillar	4 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	Spigot cube 520x760				2pcs
Frame Tower	Spigot Sleeve Block L				4pcs
	Steel Base L				4pcs
	Top Section L				4pcs
	1. Dragon stage brand, Load:1000kg, 2. Chain length:25m, 3. lifting speed:4m/min, 4. 380V-3phrase-50HZ 5. Double brake 6. G100 load chain, meeting 8:1/10:1 safety factor. 7. With 0.5M 4Pin-16A Europe plug 8. waterproof: IP54				4pcs
	1control 8pcs, with Handle case				1pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	2.00 m	50×3.0	CS289×289	3pcs
15.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	5pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
10.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	4pcs
		2.20 m	50×3.0	CS289×289	4pcs
10.20 m Ladder truss	14 sets	3.00 m	50×3.0	CL30,289*50	28pcs
		2.00 m	50×3.0	CL30,289*50	14pcs
		2.20 m	50×3.0	CL30,289*50	14pcs
Roof Components		roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
		roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
		Connect plate with clamp			3pcs
		Single clamp			28pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		457.36	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
3.00 m Wings Beam	2 sets	3.00 m	50×4.0	CS520×760	2pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	0pcs
9.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
Wings Tower	Spigot Sleeve Block L				2pcs
	Steel Base L				2pcs
	Top Section L				2pcs
	1. Dragon stage brand, Load:1000kg, 2. Chain length:25m, 3. lifting speed:4m/min, 4. 380V-3phrase-50HZ 5. Double brake 6. G100 load chain, meeting 8:1/10:1 safety factor. 7. With 0.5M 4Pin-16A Europe plug 8. waterproof: IP54				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

packing weight: 5200kg

packing volume: 34cbm

Item	Specification					Quantity
Aluminium assembly stage	topping: 4x8ft (1.22x2.44m)		wooden			88 pcs
	1.22m stage brace					99 pcs
	2.44m stage brace					96 pcs
	stand with extendable tube					108 pcs
	Stage adjustable base					108 pcs
Stage Stair	wooden topping	total	8	steps	adjustable to the stage height	2 pcs

Stage Platform and Structural Support:

The stage platform, measuring 19.52 meters by 13.42 meters, provides ample space for performers and equipment. Its elevation of 2 meters ensures good visibility for the audience. The platform itself will be supported by a robust truss structure, constructed using high-grade materials capable of handling the weight of both the stage and its potential load.

Line Array Speaker Wings:

Two expansive line array speaker wings, each with a width of 3 meters, are integrated into the design. These wings will be strategically positioned to optimize sound distribution throughout the audience area. The wings are designed to seamlessly integrate with the main truss structure, ensuring structural integrity and minimizing visual disruption.

Hoist Machine Integration:

A powerful hoist machine, driven by a reliable motor, will be incorporated into the design to facilitate the safe and efficient movement of equipment and scenery. The hoist machine will be positioned to ensure easy access and operation, contributing to the overall functionality of the stage.

Accessibility and Safety:

Two strategically placed stairs will ensure easy access to the stage for performers, crew, and technicians. The design will prioritize safety with carefully chosen materials and construction techniques, incorporating necessary safety features and ensuring compliance with all applicable regulations.

Aesthetic Considerations:

Beyond its functional elements, the stage truss structure will be designed with an eye towards aesthetics. The choice of materials, the integration of lighting fixtures, and the overall visual harmony will contribute to a visually striking stage that complements the performance and enhances the overall concert experience.

Conclusion:

This custom outdoor concert stage truss structure is meticulously designed to meet the specific needs of large-scale live performances. By combining structural integrity, functional elements, and aesthetic considerations, the stage promises to be a versatile and visually captivating platform for any concert, ensuring a memorable experience for both performers and audiences alike.
