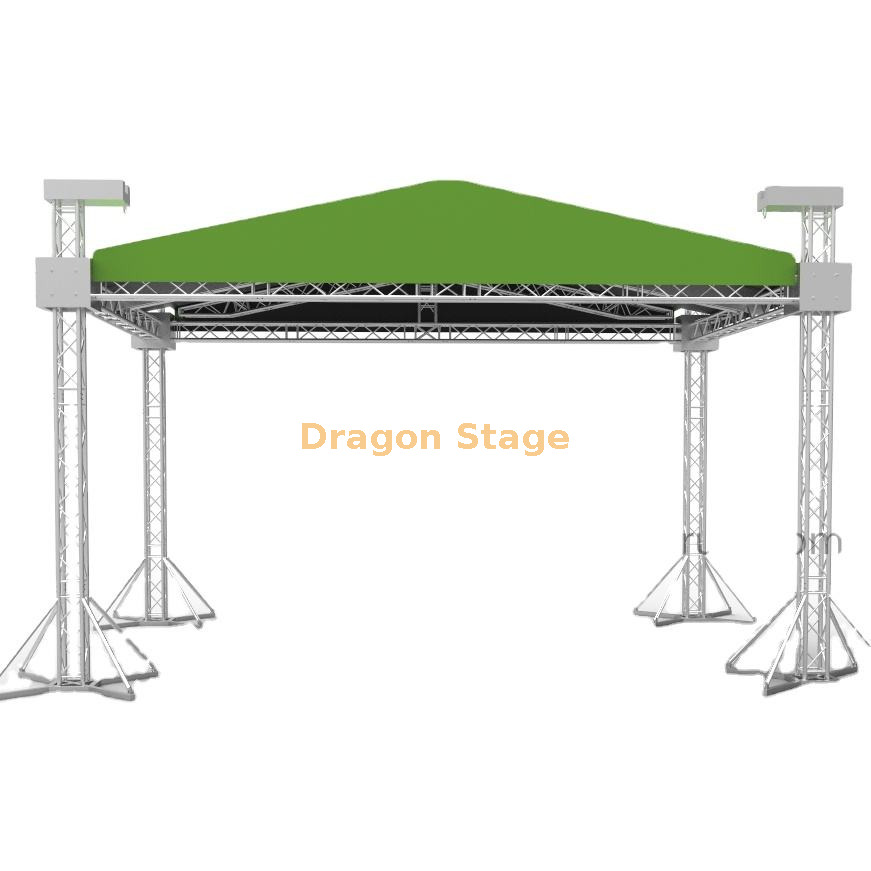

When designing an event stage system with a roof truss for a concert, there are several important considerations to keep in mind. First and foremost, safety is paramount, and the system must be engineered to withstand the weight of equipment and performers, as well as any potential weather-related challenges. Additionally, the system should be designed to be easily transportable and assembled, allowing for efficient setup and teardown at different event locations.
In terms of components, the event stage system typically includes a modular stage platform, support structures, and a roof truss system. The stage platform can be made of durable materials such as aluminum or steel, and can be customized to fit the specific needs of the event. The support structures provide stability and support for the stage, while the roof truss system offers protection and a framework for hanging equipment.
packing weight: 2200kg
packing volume: 15cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 15.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 10pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 4pcs |
| beam cube | Spigot cube 389x389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.50 m | 50×3.0 | CS289×289 | 2pcs |
| 8.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 1pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 7.70 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.70 m | 50×3.0 | CS289×289 | 4pcs |
| 7.70 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 12pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 1.70 m | 50×3.0 | CL30,289*50 | 6pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 12pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 222.26 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 0pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 7.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
packing weight: 3000kg
packing volume: 19.5cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping:1x2m | wooden | 49 pcs |
| 1m stage brace | 56 pcs |
| 2m stage brace | 56 pcs |
| stand with extendable tube | 64 pcs |
| Stage adjustable base | 64 pcs |
| Stage Stair | wooden topping | total | 7 | steps | 2 pcs |
