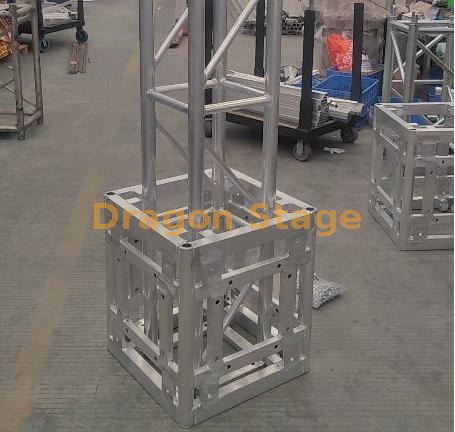

Factory Stage Truss Lifting System Aluminum Sleeve Block for Screw Truss 300mm 400mm 500x600mm / 520x760mm / 600x760mm

5 0 Reviews

Factory Stage Truss Lifting System Aluminum Sleeve Block for Screw Truss 300mm 400mm

500x600mm / 520x760mm / 600x760mm

Price: ￥ 750 - 950

2 size use aluminum sleeve block for stage pillar beam truss

Specifications

Material: Aluminum 6061-T6 / 6082-T6 / Steel

Dimension

Model	Items	Dimensions	Main Tube	Vice Tube	Brace	Length
Bolt TB200	Square truss	200x200mm	32x2mm	16x2mm	12x2mm	0.5m, 1m, 2m, 3m, 4m
Bolt TB300	Square truss	300x300mm	50x3mm	30x2mm	25x2mm	0.5m, 1m, 2m, 3m, 4m
Bolt TB350	Square truss	350x350mm	50x3mm	50x2mm	25x2mm	0.5m, 1m, 2m, 3m, 4m
Bolt TB400	Square truss	400x400mm	50x3mm	50x2mm	25x2mm	0.5m, 1m, 2m, 3m, 4m
Bolt TB450	Square truss	450x450mm	50x3mm	50x2mm	25x2mm	0.5m, 1m, 2m, 3m, 4m
Bolt TB500	Square truss	500x500mm	50x3mm	50x2mm	25x2mm	0.5m, 1m, 2m, 3m, 4m
Bolt TB4060	Square truss	400x600mm	50x3mm	50x2mm	25x2mm	0.5m, 1m, 2m, 3m, 4m
Bolt TB5060	Square truss	500x600mm	50x3mm	50x2mm	25x2mm	0.5m, 1m, 2m, 3m, 4m
Bolt TB5276	Square truss	520x760mm	50x3mm	50x2mm	25x2mm	0.5m, 1m, 2m, 3m, 4m
Bolt TB6076	Square truss	600x760	50x3mm	50x2mm	30x2mm	0.5m, 1m, 2m, 3m, 4m

Model	Items	Dimension	Main tube	Vicce tube	Brace	Length
Spigot TS220	Square turss	220x220mm	32x2mm	NO	12x2mm	0.5m, 1m, 2m, 3m, 4m
Spigot TS290	Square turss	290x290mm	50x3mm	NO	20x2mm	0.5m, 1m, 2m, 3m, 4m
Spigot TS390	Square turss	390x390mm	50x3mm	NO	25x2mm	0.5m, 1m, 2m, 3m, 4m
Spigot TS520	Square turss	520x520mm	50x3mm	50x2mm	25x2mm	0.5m, 1m, 2m, 3m, 4m
Spigot TS5060	Square turss	500x600mm	50x3mm	50x2mm	25x2mm	0.5m, 1m, 2m, 3m, 4m
Spigot TS5276	Square turss	520x760mm	50x3mm	50x2mm	25x2mm	0.5m, 1m, 2m, 3m, 4m
Spigot TS6090	Square turss	600x900mm	50x4mm	50x3mm	30x2mm	0.5m, 1m, 2m, 3m, 4m
