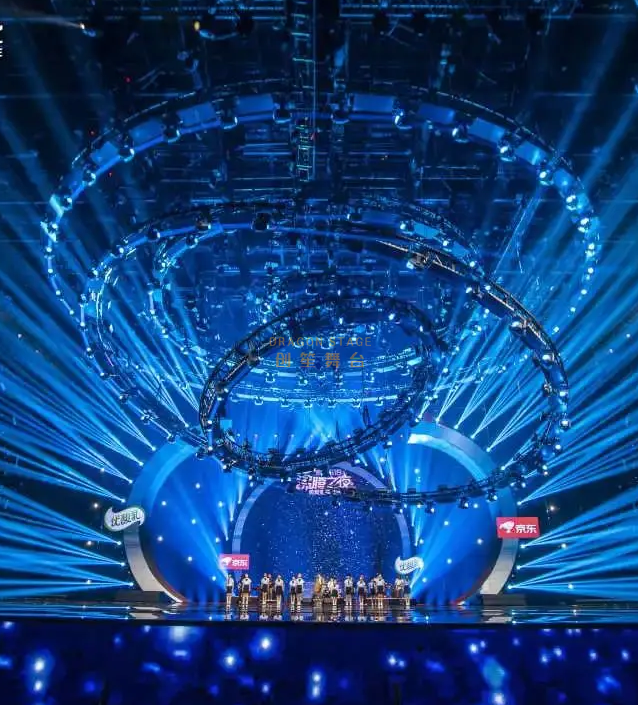

| CNC motor-T10 |
| NO. | Item | Specification | Qty |
| length(M) | main tube(MM) | size(MM) |
| 1 | Aluminium Circle | Diameter 5.00 m | φ50×3.0 | Circle BS300×300 | 1 pcs |
| 2 | Diameter 4.00 m | φ50×3.0 | Circle BS300×300 | 1 pcs |
| 3 | Diameter 3.00 m | φ50×3.0 | Circle BS300×300 | 1 pcs |
| 4 | Black fibre sling | 1.5mm cables(31 laps) 2tons-3m length | 12 pcs |

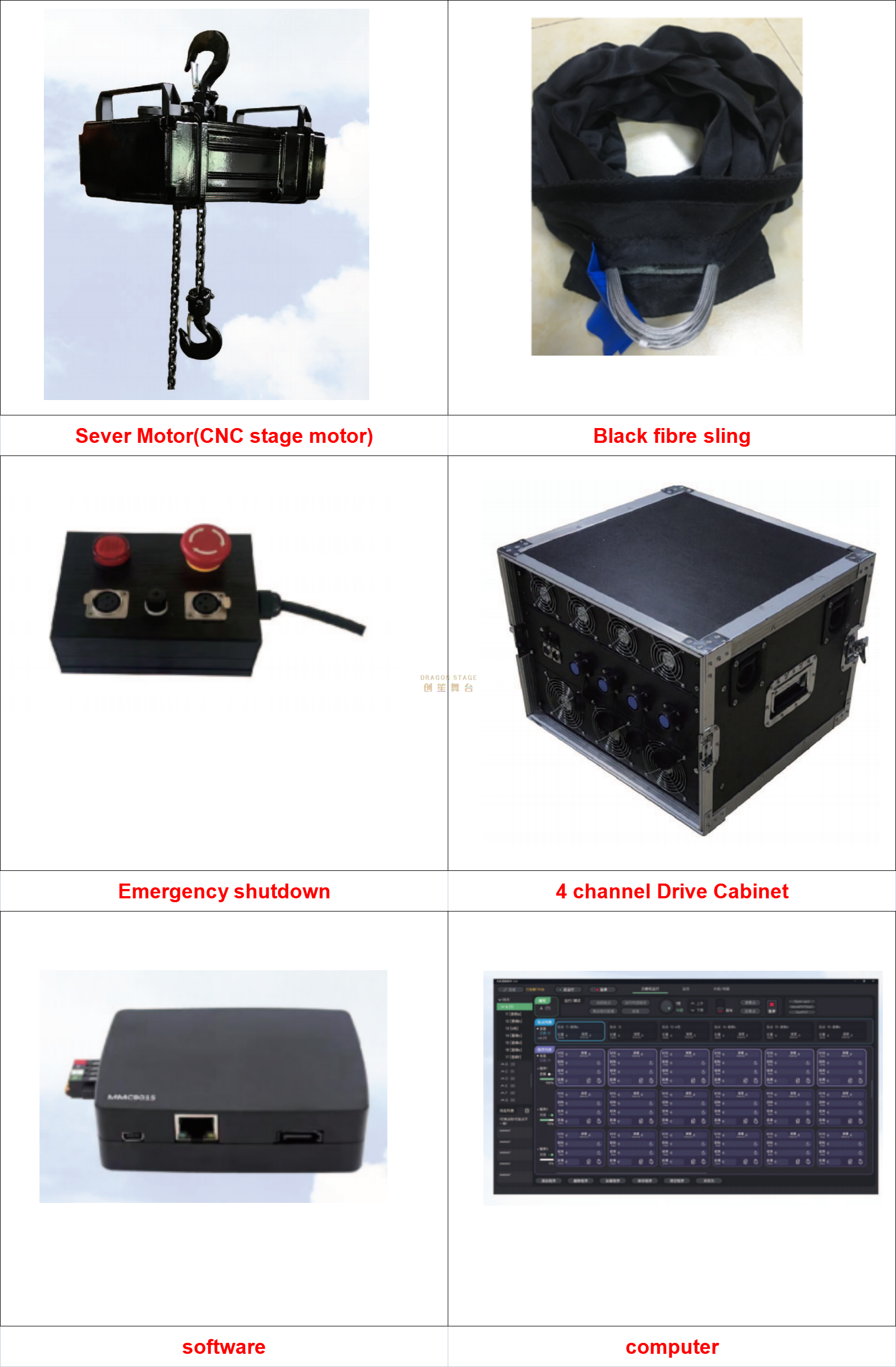

| 5 | Sever Motor
(CNC stage motor) | Intelligent Electro Chain hoist 0.5T :
Speed : 0-32m/minute
Loading weight : 500KG
Power : 3.0KW
Chain breaking force : > 8T
Working temperature : -10°C-55°C
Reciprocating accuracy < 0.1mm
Chain : 25m (Japanese original FEC chain )
Double brake system, safe and reliable
Other functions: intelligent brake logic, torque, load monitoring, upper and lower limit | 12 pcs |
 6 | 4 channel Drive Cabinet | 4 pcs hoists per drive cabinet, easy installation , power cable distance can reach 40m
Rated voltage : 380V
Rated current : 4*8A
Series design
Lake of phase protection function
Remote power control and emergency stop control
The cabinet equipped with rings easy install
Auto adjusting cooling fans (from High to low) meet the harsh environment
Micro motion control computer | 3 pcs |
| 7 | Emergency shutdown |
| 1 pcs |
| 8 | computer | Microcomputer = PC + PLC + remote control card Powerful kernel, complete function, industrial grade Plug and play, stable and reliable, small size main parameter:
CPU : ARMortex-A9
Main frequency : 1.2GHz*4 nucleus
Solid state drive : 8G
Memory : 2GB DDR3 1333M
Linux kernel : 4.1.15 operating system : Ubuntul4.04 LTS, Remote login : support ssh /tftp / telent | 1 pcs |
| 9 | software | Special control software
Support up to 26 groups, support group name remarks
Support hoist name remarks
With intelligent brake control function
Support section or whole execute program and auto cycle running program
Support to position, speed, distance, time arbitrary conditions to edit motion instructions.
Support to edit and save program files
Support single hoist upper and lower limit setting function
Support torque, load, over speed, overrun and other monitoring functions, and self check before each hoist action.
Support fault protection. If any hoist is abnormal, the whole system will be locked to ensure safety.
Support the import and execution of PVT instructions after 3D modeling | 1 pcs |
