CXM-04
Dragon Stage

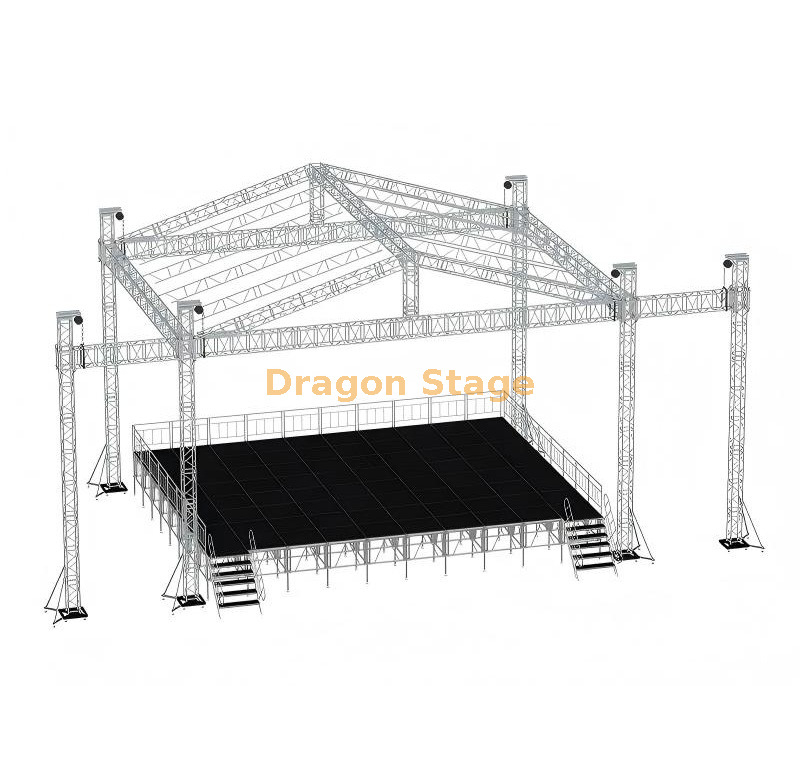

Line Array Stage Speaker Roof Trusses for Sale Outdoor Aluminum Hanger Speaker Truss System for Event 10x6m
Built for versatility, durability, and seamless integration, these trusses offer the perfect solution for suspending line array speakers, creating an immersive sound experience for your audience.
packing volume: 13cbm
packing weight: 1800kg
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
10.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
6.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
Frame Tower | Spigot Sleeve Block S | 4pcs | ||||||
Steel Base S | 4pcs | |||||||
Top Section S | 4pcs | |||||||
Manual hoist,BA05 2Tons | 4pcs | |||||||
Spigot Hinge Section,Height 1m | 4pcs | |||||||
Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
Long outrigger | 16pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 2 sets | 1.00 m | 50×3.0 | CS289×289 | 2pcs | |||
6.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
5.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
2.20 m | 50×3.0 | CS289×289 | 4pcs | |||||
5.20 m Ladder truss | 4 sets | 3.00 m | 50×3.0 | CL30,289*50 | 4pcs | |||
2.00 m | 50×3.0 | CL30,289*50 | 0pcs | |||||
2.20 m | 50×3.0 | CL30,289*50 | 4pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
Connect plate with clamp | 2pcs | |||||||
Single clamp | 8pcs | |||||||
Double clamp | 8pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 126.16 | 1pcs | ||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 0pcs | |||
2.00 m | 50×3.0 | CS289×289 | 2pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
6.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
Wings Tower | Spigot Sleeve Block S | 2pcs | ||||||
Steel Base S | 2pcs | |||||||
Top Section S | 2pcs | |||||||
Manual hoist,BA05 2Tons | 2pcs | |||||||
Spigot Hinge Section,Height 1m | 2pcs | |||||||
Fibre sling,BA04,2 tons 3m | 2pcs | |||||||
Long outrigger | 8pcs | |||||||
Truss Accessory | Conical coupler & Safrty clip & pin | whole set |
