CLM-01
Dragon Stage

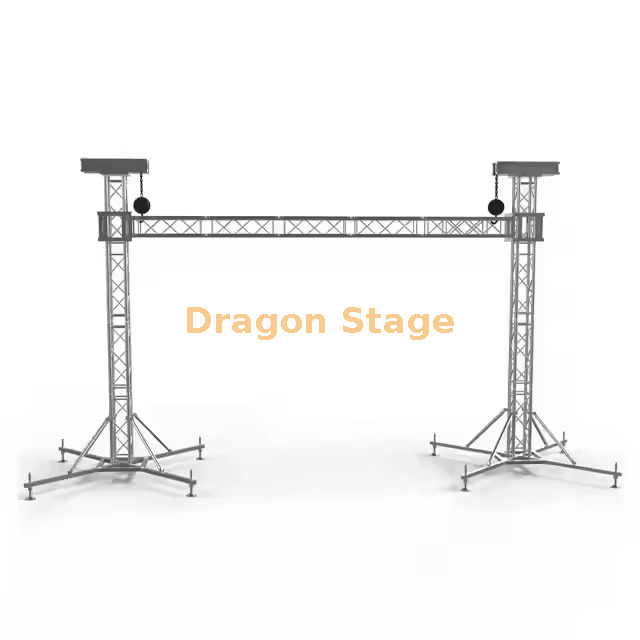

Outdoor Led Screen Truss System Screen Rigging Goal Post Truss 6x4m
packing volume: 2.1cbm
packing weight: 340kg
Item | Specification(squre truss) | Qty | |||||
length(M) | main tube(MM) | size(MM) | |||||
Beam | 3 | 50×3.0 | CS289×289 | 2 pcs | |||
2 | 50×3.0 | CS289×289 | pcs | ||||
1 | 50×3.0 | CS289×289 | pcs | ||||
0.5 | 50×3.0 | CS289×289 | pcs | ||||
Pillar | 3 | 50×3.0 | CS289×289 | 2 pcs | |||
2 | 50×3.0 | CS289×289 | pcs | ||||
1 | 50×3.0 | CS289×289 | pcs | ||||
0.5 | 50×3.0 | CS289×289 | pcs | ||||
Tower | Spigot Sleeve Block S | 2 pcs | |||||
Steel Base S | 2 pcs | ||||||
Top Section S | 2 pcs | ||||||
Manual hoist,BA05 2Tons | 2 pcs | ||||||
Spigot Hinge Section,Height 1m | 2 pcs | ||||||
Fibre sling,BA04,2 tons 3m | 2 pcs | ||||||
Long outrigger | 8 pcs | ||||||
Truss Accessory | Conical coupler & Safrty clip & pin | whole set |
Products Specification
item | LED post goal |
Place of Origin | Guangdong,China |
Brand Name | Dragon Stage |
Model Number | LED-PG02 |
Size | 10x6m / 12x8m / 14x8m |
Dimension of truss | 289*289mm spigot square truss |
Material | Aluminum 6082 T6 |
Main tube | 50*3mm |
Brace tube | 25*2mm |
Surface | Brace tube on 4 sides |
Load capacity | 1200kg / 1030kg / 860kg |
Certificate | CE, TUV |

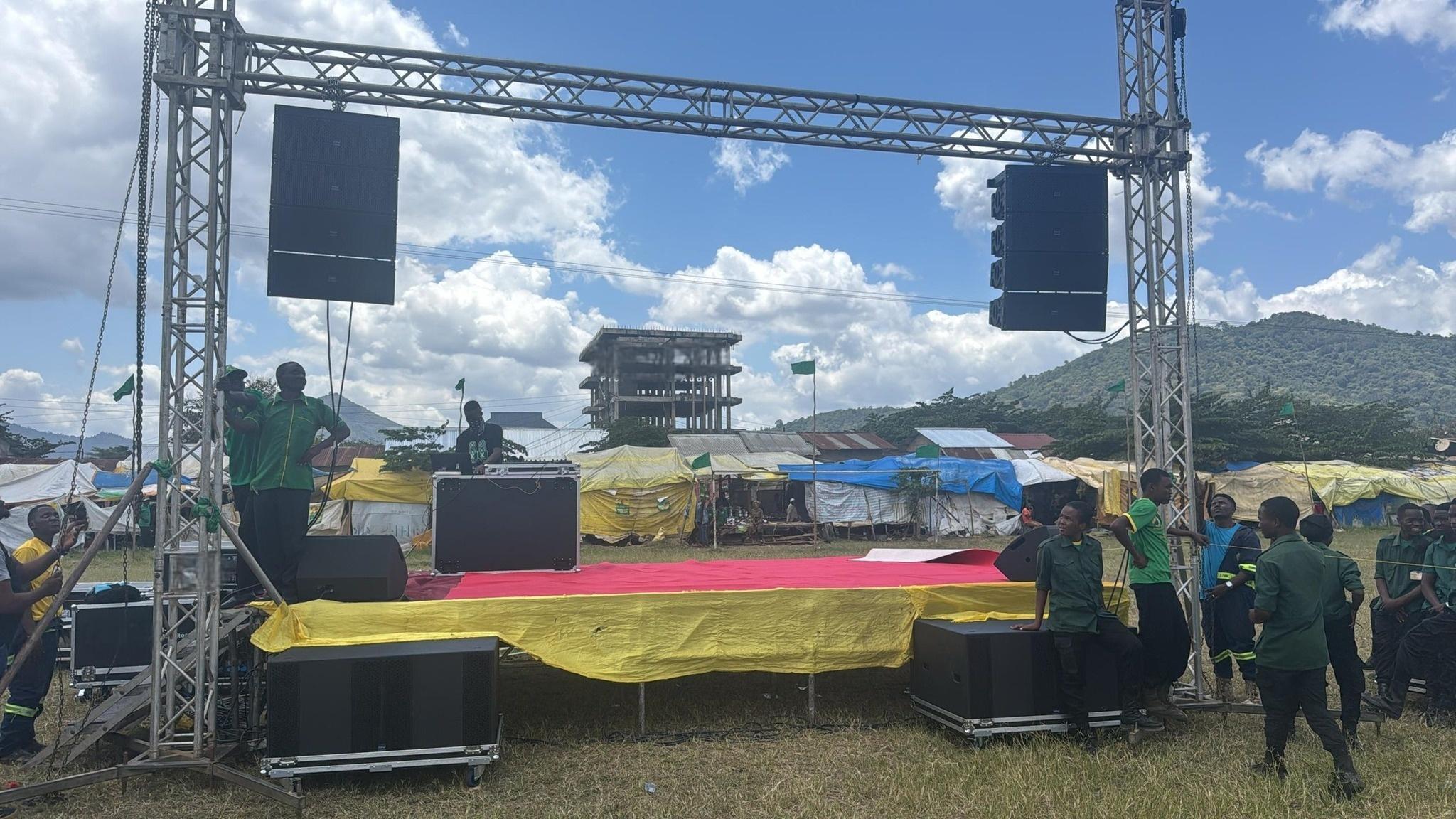

Outdoor Led Screen Truss System Screen Rigging Goal Post Truss 6x4m
packing volume: 2.1cbm
packing weight: 340kg
Item | Specification(squre truss) | Qty | |||||
length(M) | main tube(MM) | size(MM) | |||||
Beam | 3 | 50×3.0 | CS289×289 | 2 pcs | |||
2 | 50×3.0 | CS289×289 | pcs | ||||
1 | 50×3.0 | CS289×289 | pcs | ||||
0.5 | 50×3.0 | CS289×289 | pcs | ||||
Pillar | 3 | 50×3.0 | CS289×289 | 2 pcs | |||
2 | 50×3.0 | CS289×289 | pcs | ||||
1 | 50×3.0 | CS289×289 | pcs | ||||
0.5 | 50×3.0 | CS289×289 | pcs | ||||
Tower | Spigot Sleeve Block S | 2 pcs | |||||
Steel Base S | 2 pcs | ||||||
Top Section S | 2 pcs | ||||||
Manual hoist,BA05 2Tons | 2 pcs | ||||||
Spigot Hinge Section,Height 1m | 2 pcs | ||||||
Fibre sling,BA04,2 tons 3m | 2 pcs | ||||||
Long outrigger | 8 pcs | ||||||
Truss Accessory | Conical coupler & Safrty clip & pin | whole set |
Products Specification
item | LED post goal |
Place of Origin | Guangdong,China |
Brand Name | Dragon Stage |
Model Number | LED-PG02 |
Size | 10x6m / 12x8m / 14x8m |
Dimension of truss | 289*289mm spigot square truss |
Material | Aluminum 6082 T6 |
Main tube | 50*3mm |
Brace tube | 25*2mm |
Surface | Brace tube on 4 sides |
Load capacity | 1200kg / 1030kg / 860kg |
Certificate | CE, TUV |
