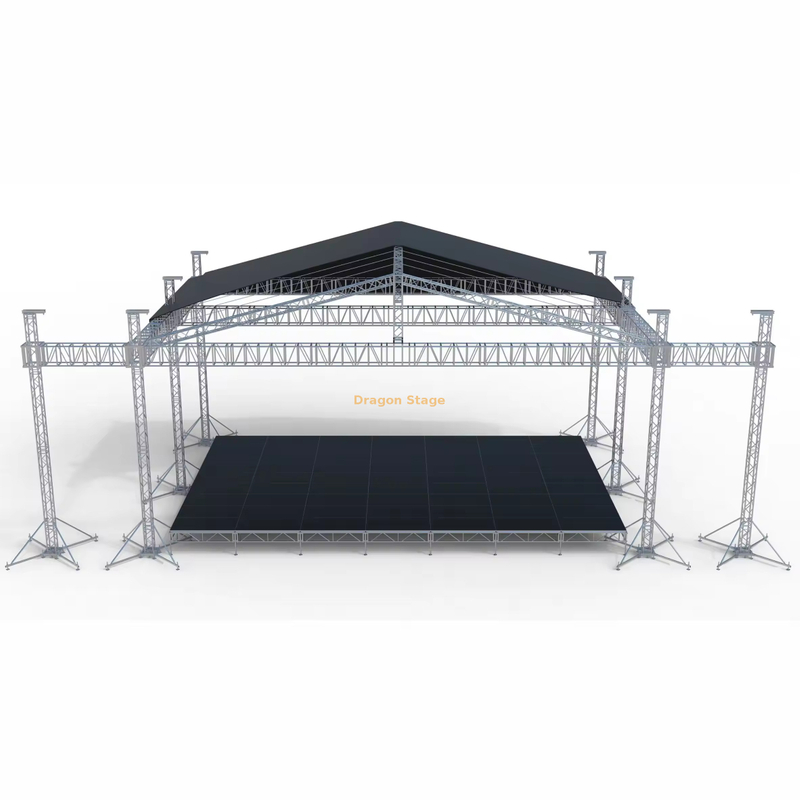

Outdoor Portable Concert stage truss manufacturers 70x60x26ft
packing weight: 4400kg
packing volume: 60cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 21.00 m Beam(front) | 3 sets | 3.00 m | 50×4.0 | CS520×760 | 21 pcs |
| 2.00 m | 50×4.0 | CS520×760 | pcs |
| 1.00 m | 50×4.0 | CS520×760 | pcs |
| 18.00 m Beam(side) | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 12 pcs |
| 2.00 m | 50×4.0 | CS520×760 | pcs |
| 1.00 m | 50×4.0 | CS520×760 | pcs |
| 7.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | CS389×389 | 12 pcs |
| 2.00 m | 50×3.0 | CS389×389 | pcs |
| 1.00 m | 50×3.0 | CS389×389 | 6 pcs |
| Frame Tower | Spigot Sleeve Block L | 6 pcs |
| Steel Base L | 6 pcs |
| Top Section L | 6 pcs |
| Manual hoist,BA05 2Tons | 6 pcs |
| Spigot Hinge Section,Height 1m | 6 pcs |
| Fibre sling,BA04,2 tons 3m | 6 pcs |
| Long outrigger | 24 pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 2.10 m | 50×3.0 | CS289×289 | 3 pcs |
| 18.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 6 pcs |
| 2.00 m | 50×3.0 | CS289×289 | pcs |
| 1.00 m | 50×3.0 | CS289×289 | pcs |
| 10.70 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 18 pcs |
| 2.00 m | 50×3.0 | CS289×289 | pcs |
| 1.70 m | 50×3.0 | CS289×289 | 6 pcs |
| 10.70 m Ladder truss | 14 sets | 3.00 m | 50×3.0 | CL30,289*50 | 42 pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | pcs |
| 1.70 m | 50×3.0 | CL30,289*50 | 14 pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2 pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 1 pcs |
| Connect plate with clamp | 3 pcs |
| Single clamp | 28 pcs |
| Double clamp | 12 pcs |
| roof canopy material:pvc, Blue Colour or customized. | 551.46 | 1 pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 3.00 m Wings Beam | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 2 pcs |
| 2.00 m | 50×4.0 | CS520×760 | pcs |
| 1.00 m | 50×4.0 | CS520×760 | pcs |
| 7.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4 pcs |
| 2.00 m | 50×3.0 | CS389×389 | pcs |
| 1.00 m | 50×3.0 | CS389×389 | 2 pcs |
| Wings Tower | Spigot Sleeve Block L | 2 pcs |
| Steel Base L | 2 pcs |
| Top Section L | 2 pcs |
| Manual hoist,BA05 2Tons | 2 pcs |
| Spigot Hinge Section,Height 1m | 2 pcs |
| Fibre sling,BA04,2 tons 3m | 2 pcs |
| Long outrigger | 8 pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
Stage trusses have long been an integral component of concert setups, providing the framework upon which lighting, sound equipment, and other essential elements are mounted. Over the years, advancements in technology and engineering have led to the development of portable truss systems that offer greater flexibility, durability, and ease of assembly. The Outdoor Portable Concert Stage Truss exemplifies this evolution, combining cutting-edge design with practicality to meet the demands of modern-day performances.
Measuring 70x60x26ft, the Outdoor Portable Concert Stage Truss boasts an impressive size that provides ample space for performers to showcase their talents. The inclusion of two wings, each three meters wide, adds versatility to the stage setup, allowing for dynamic performances that engage the audience from multiple angles. The truss's sturdy construction ensures stability and safety, essential factors in any live event setting.
One of the standout features of the Outdoor Portable Concert Stage Truss is its portability, allowing for easy transportation and setup at various outdoor venues. This flexibility enables event organizers to bring high-quality staging to locations that may not have permanent stage facilities, expanding the reach of live performances and cultural events. Additionally, the ease of assembly and disassembly saves time and resources, making it a cost-effective solution for concert production companies.
The presence of a well-designed stage truss can significantly enhance the visual impact of a performance, creating a focal point for the audience and providing a platform for innovative lighting and visual effects. The Outdoor Portable Concert Stage Truss, with its expansive size and two wings, offers ample space for creative expression, allowing performers to interact with the stage in unique ways. This interplay between artists and their environment adds depth and dimension to the overall spectacle, captivating audiences and creating memorable experiences.
