PA Tower Aluminum for Line Array with Motor 6m

5 0 Reviews
PA Tower Aluminum for Line Array with Mortor 6m referring to a PA tower made of aluminum, designed to support a line array speaker system, and with a height of 6 meters. it is motorized hoist or winch system that allows for the lifting and lowering of the line array speakers for ease of setup and adjustment.
Price: 12600
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • CAZ-01

  • Dragon Stage

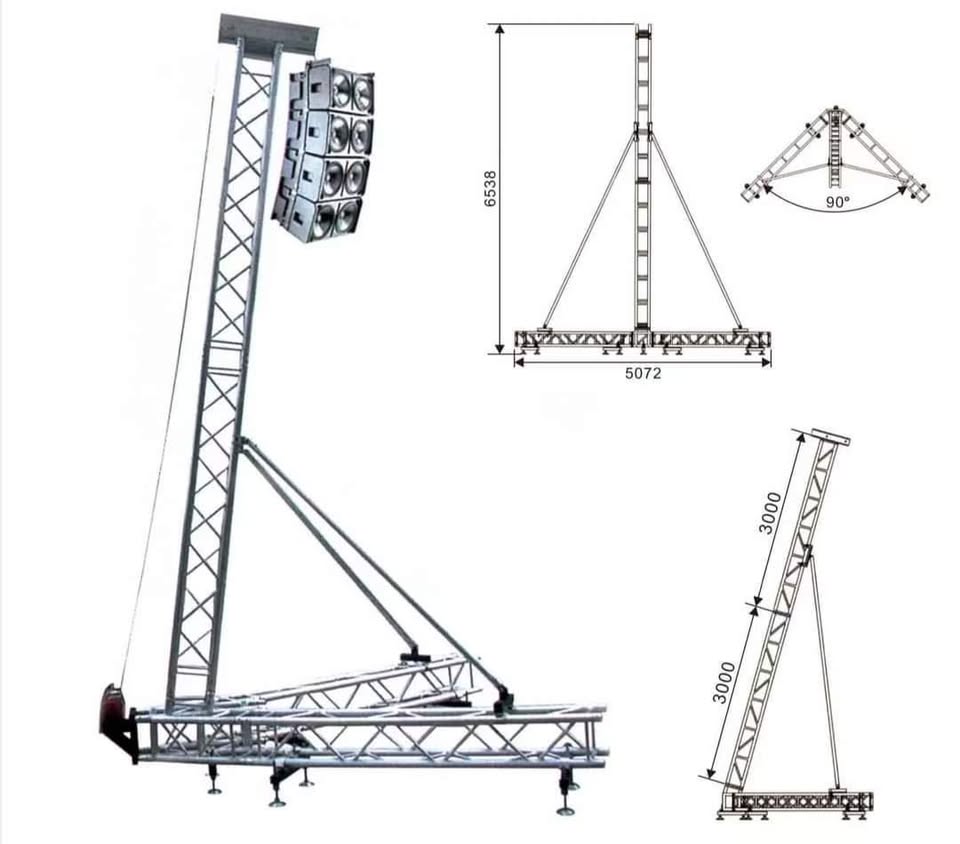

PA Tower Aluminum for Line Array with Mortor 6m

packing weight: 300kg

packing volume: 2cbm

Parts Specification Quantity
length(M) main tube(MM) size(MM)
Main Truss 3 50×3.0 CS389×389 2 pcs
2 50×3.0 CS389×389 2 pcs
1 50×3.0 CS389×389 pcs
Supports Rod 3 50x3.0 _ 2 pcs
Top section for CS289x289 truss 1 pcs
4 Ways Corner for CS30 1 pcs
Adjustable Base for CS40 truss 7 pcs
Motor HDH-2,Chinese brand, Load:500kg, Chain length:25m,  lifting  speed:3.2m/min,                                      380V-3phrase, output:750W,Ins.class:F,Body 1 pcs
motor case 1pcs motor in one case 1 pcs
Aluminium Support for motor 1 pcs
Truss Accessory Conical coupler,Spigots,pins whole set


微信图片_20210521100859

Here's a breakdown of each component:

PA Tower: A PA tower, also known as a speaker tower or speaker stand, is a structure used to elevate and support loudspeakers, particularly line array systems, in live sound reinforcement applications. Line array speakers are commonly used in concerts and large events to distribute sound evenly over a wide area.

Aluminum Construction: Aluminum is a popular choice of material for constructing PA towers due to its lightweight yet durable properties. Aluminum towers are relatively easy to transport and set up compared to heavier alternatives like steel.

Line Array: A line array is a type of loudspeaker system consisting of multiple individual speakers arranged in a vertical line. This configuration allows for precise control of sound dispersion and coverage, making line arrays ideal for large outdoor events and concerts.

6m Height: The height of the PA tower is specified as 6 meters, indicating the maximum elevation it can reach. The height is essential to ensure that the line array speakers can effectively cover the intended audience area.

Motorized Hoist (Mortor): The inclusion of a motorized hoist or winch system allows for easier and safer setup and adjustment of the line array speakers' position. This motorized mechanism helps lift and lower the heavy line array speakers, reducing the manual effort required during setup and minimizing the risk of accidents.
