African Aluminum Standard Stage Truss for Open Air Crusade 8x6x6m

5 0 Reviews
African Aluminum Standard Stage Truss for Open Air Crusade 8x6x6m
including crusade stage, crusade roof truss most welcome in Nigeria, Ethiopia, Angola
it is Outdoor Aluminum Portable Stage truss column system

Price: ￥ 26180  -  30080
Features:
8x6x6m crusade truss
7.32x6.1m height 1.2-2m crusade stage
Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • Dragon Stage

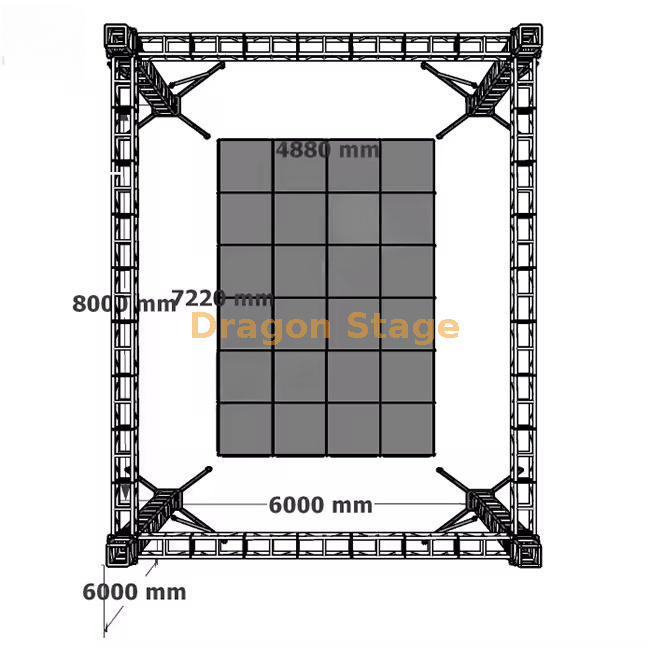

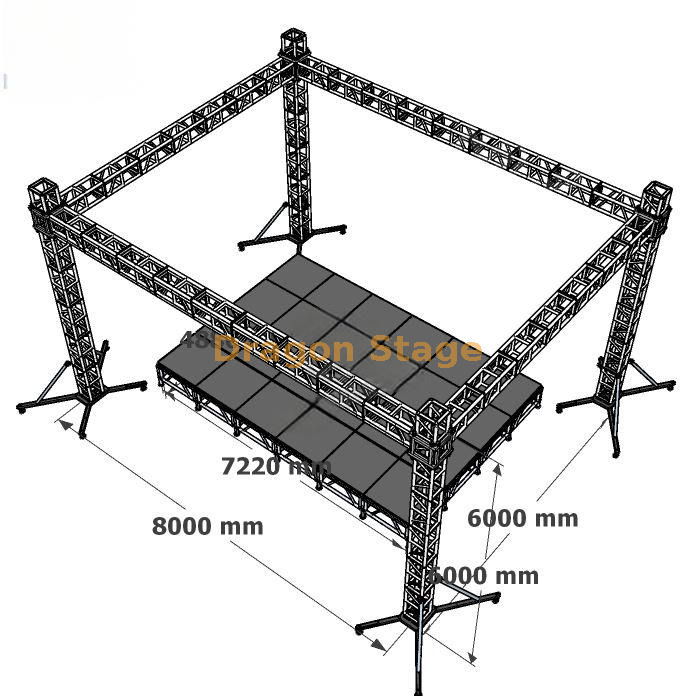

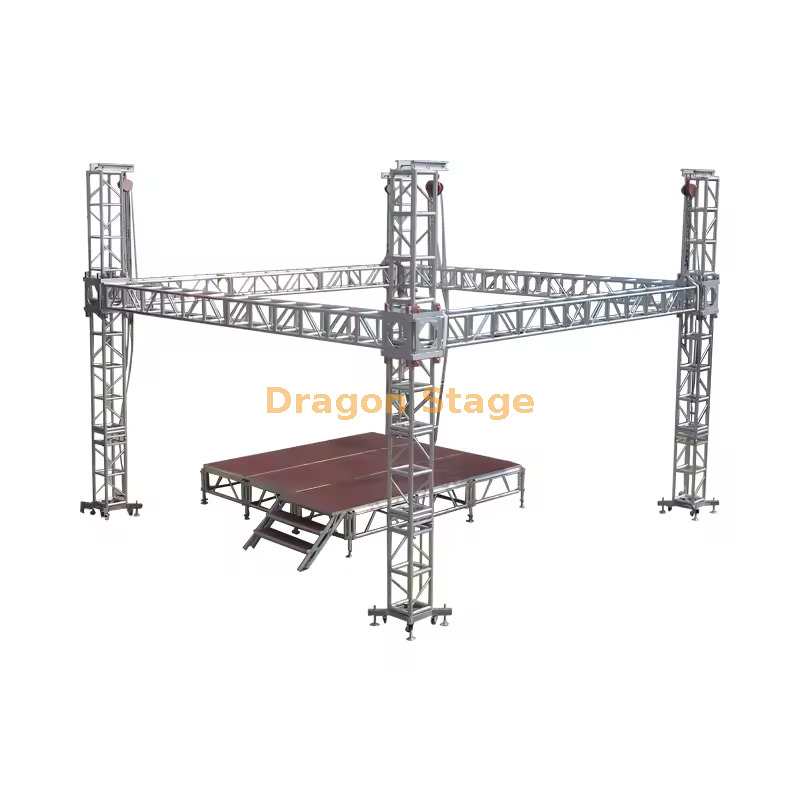

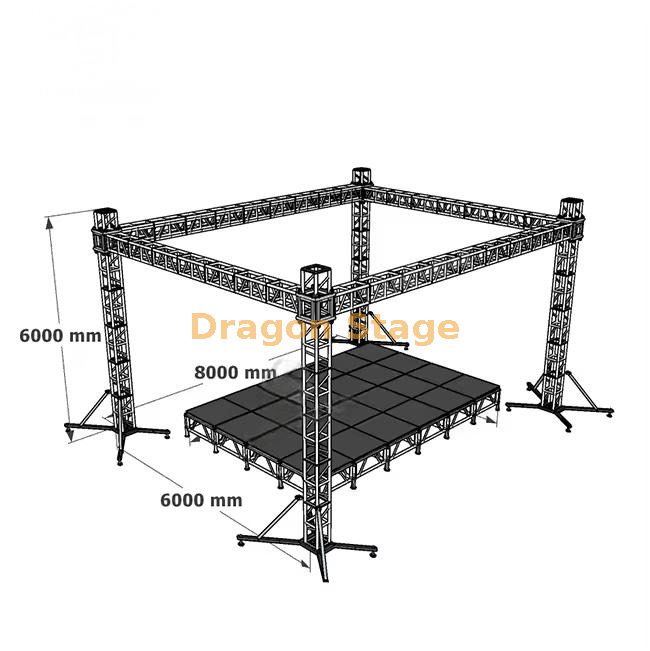

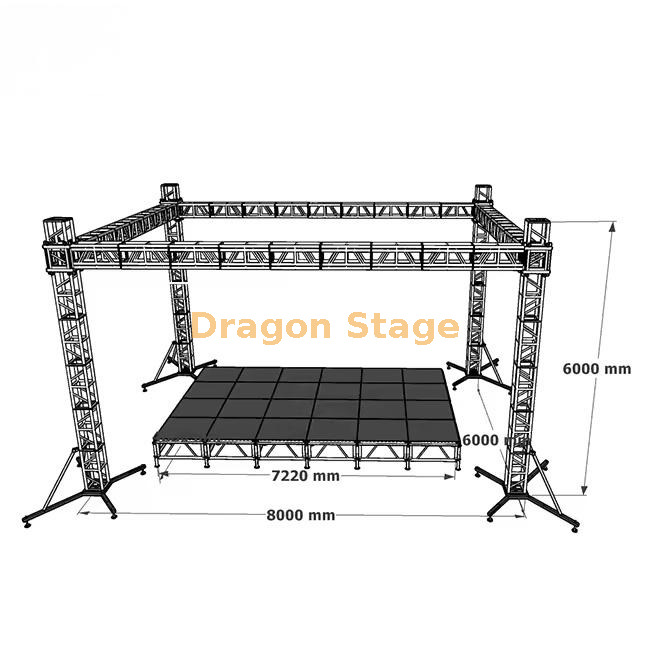

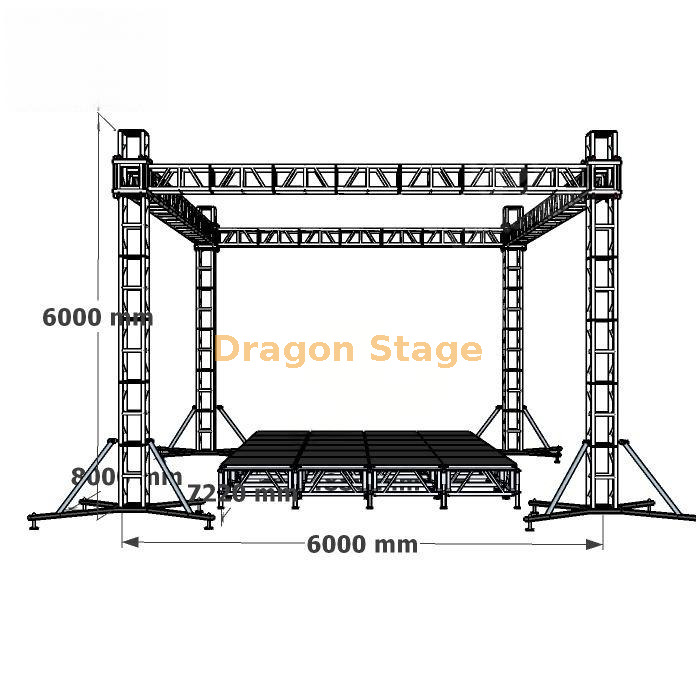

African Aluminum Standard Stage Truss for Open Air Crusade 8x6x6m

packing weight：850kg

packing volume: 8cbm

ItemSpecification(squre truss)Qty
length(M)main tube(MM)size(MM)
Beam350×3.0CS289×2898 pcs
250×3.0CS289×289pcs
150×3.0CS289×2894 pcs
Pillar350×3.0CS289×2894 pcs
250×3.0CS289×2894 pcs
150×3.0CS289×289pcs
TowerSpigot Sleeve Block S4 pcs
Steel Base S4 pcs
Top Section S4 pcs
Manual hoist,BA05 2Tons4 pcs
Spigot Hinge Section,Height 1m4 pcs
Fibre sling,BA04,2 tons 3m4 pcs
Long outrigger16 pcs
Truss AccessoryConical coupler & Safrty clip & pinwhole
set

packing weight:1200kg

packing volume: 8cbm

ItemSpecificationQuantity
Aluminium assembly stagetopping: 4x8ft
(1.22x2.44m)		wooden15 pcs
1.22m stage brace20 pcs
2.44m stage brace18 pcs
stand with extendable tube24 pcs
Stage adjustable base24 pcs
Stage Stairwooden toppingtotal8steps2 pcs
