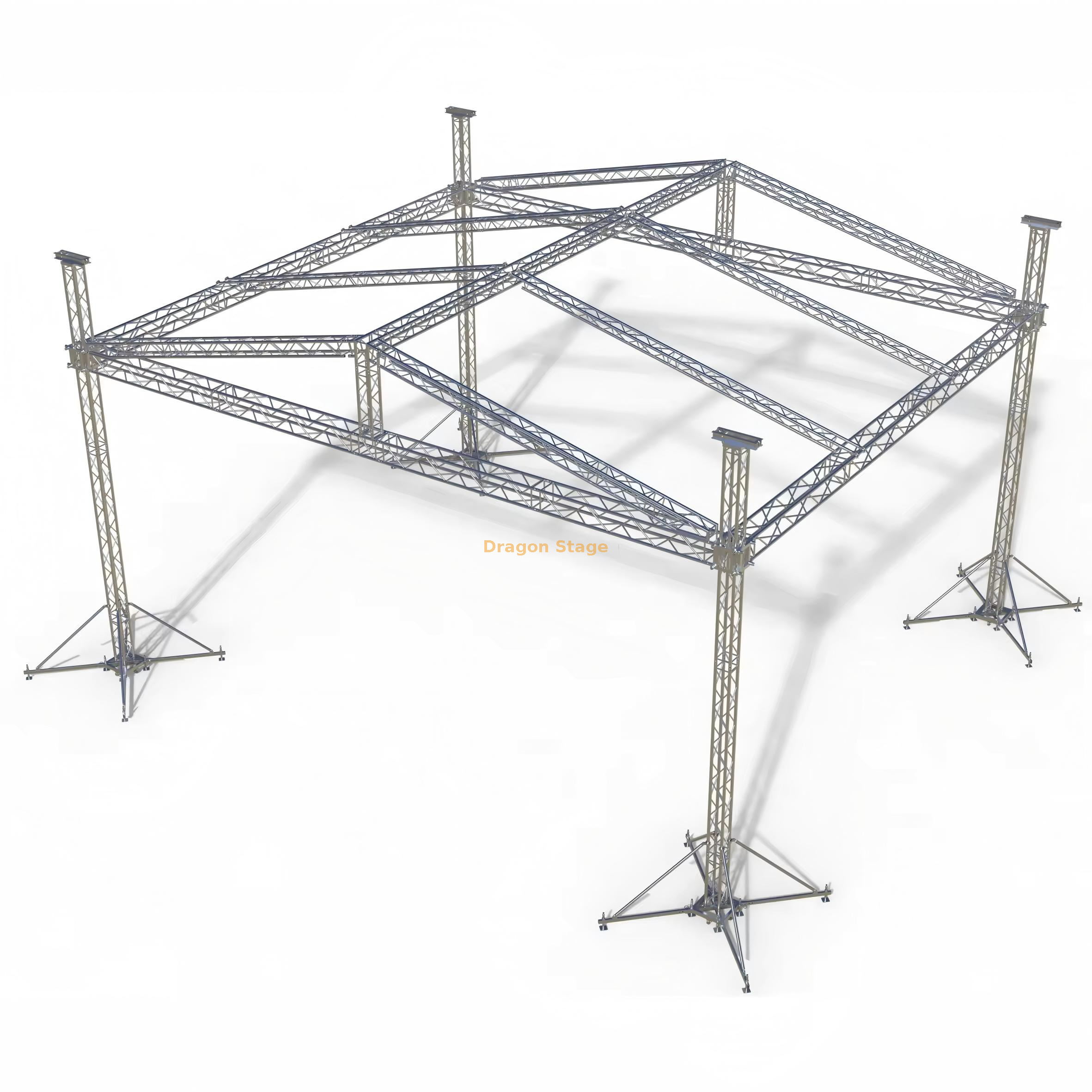

Aluminum Event Exhibition Truss 22x11x7m

5 0 Reviews
roofing truss system sizes are 22x11x7m
Aluminum event exhibition truss refers to a type of structural framework made of aluminum that is commonly used in the event and exhibition industry. It is specifically designed to create versatile and customizable display structures for trade shows, exhibitions, fairs, and other similar events.
Price: 125534
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • DRAGON STAGE

packing weight: 3100kg

packing volume: 30cbm

Item
Specification(squre truss)Qty

lengthmain tube(mm)size(mm)
22.00 m Beam(front)2 sets3.00 m50×4.0CS520×76014pcs
2.00 m50×4.0CS520×7600pcs
1.00 m50×4.0CS520×7602pcs
11.00 m Beam(side)2 sets3.00 m50×4.0CS520×7606pcs
2.00 m50×4.0CS520×7602pcs
1.00 m50×4.0CS520×7600pcs
6.00 m Pillar4 sets3.00 m50×3.0CS389×3898pcs
2.00 m50×3.0CS389×3890pcs
1.00 m50×3.0CS389×3890pcs
beam cubeSpigot cube 520x7600pcs
Frame TowerSpigot Sleeve Block L4pcs
Steel Base L4pcs
Top Section L4pcs
Manual hoist,BA05 2Tons4pcs
Spigot Hinge Section,Height 1m4pcs
Fibre sling,BA04,2 tons 3m4pcs
Long outrigger16pcs
Item
Specification(squre truss)Qty

lengthmain tube(mm)size(mm)
Roof Pillar2 sets2.20 m50×3.0CS289×2892pcs
11.00 m Top Beam1 sets3.00 m50×3.0CS289×2893pcs
2.00 m50×3.0CS289×2891pcs
1.00 m50×3.0CS289×2890pcs
11.20 m Oblique Beam4 sets3.00 m50×3.0CS289×28912pcs
2.00 m50×3.0CS289×2890pcs
2.20 m50×3.0CS289×2894pcs
11.20 m Ladder truss10 sets3.00 m50×3.0CL30,289*5030pcs
2.00 m50×3.0CL30,289*500pcs
2.20 m50×3.0CL30,289*5010pcs
Roof Components
roof conner 4 ways, use for roof beam trussCS289×2892pcs

roof conner 5 ways, use for roof beam trussCS289×2890pcs

Connect plate with clamp2pcs

Single clamp20pcs

Double clamp8pcs

roof canopy material:pvc, Blue Colour or customized.403.761pcs

Here are some key features and considerations regarding aluminum event exhibition trusses:

Material: Aluminum is a popular choice for event exhibition trusses due to its lightweight yet durable nature. It offers a high strength-to-weight ratio, making it easy to transport, assemble, and dismantle. Aluminum is also corrosion-resistant, ensuring the longevity of the truss system.

Versatility and customization: Aluminum trusses are available in various sizes, shapes, and configurations, allowing for flexible and customizable designs. Truss sections can be easily connected and combined to create different booth layouts and structures based on the exhibitor's needs and event requirements.

Modular design: Aluminum event exhibition trusses often feature a modular design, meaning they consist of individual sections that can be connected using connectors and fasteners. This modular construction enables easy assembly and disassembly, making it efficient for setting up and reconfiguring booth layouts.

Load-bearing capacity: Event exhibition trusses need to support various elements, such as display panels, lighting fixtures, signage, audiovisual equipment, and hanging displays. The load-bearing capacity of the trusses should be carefully considered to ensure stability and safety.

Aesthetic options: Aluminum trusses can be customized with different finishes, such as silver, black, white, or custom colors, to match the exhibitor's branding or event theme. Additionally, trusses can be adorned with fabric wraps, graphic panels, or other decorative elements to enhance the visual appeal of the booth.

Safety considerations: Proper installation and adherence to safety guidelines are essential when using aluminum event exhibition trusses. Trusses should be securely anchored, and weight loads should be distributed evenly to maintain stability and prevent accidents.

Aluminum event exhibition trusses provide a flexible and reliable solution for creating visually appealing and functional booth structures at trade shows and exhibitions. Their lightweight nature, versatility, and ease of customization make them popular choices in the event industry.
