packing weight: 3950kg
packing volume: 36cbm
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
18.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS500×600 | 18pcs | |||
2.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
1.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
12.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 8pcs | |||
2.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
1.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
9.00 m Pillar | 6 sets | 3.00 m | 50x3.0 | CS350×350 | 18pcs | |||
2.00 m | 50x3.0 | CS350×350 | 0pcs | |||||
1.00 m | 50x3.0 | CS350×350 | 0pcs | |||||
beam cube | Spigot cube 500x600 | 0pcs | ||||||
Frame Tower | Spigot Sleeve Block M | 6pcs | ||||||
Steel Base M | 6pcs | |||||||
Top Section M | 6pcs | |||||||
Manual hoist,BA05 2Tons | 6pcs | |||||||
Spigot Hinge Section,Height 1m | 6pcs | |||||||
Fibre sling,BA04,2 tons 3m | 6pcs | |||||||
Long outrigger | 24pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 3 sets | 1.80 m | 50×3.0 | CS289×289 | 3pcs | |||
12.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
9.20 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 12pcs | |||
2.00 m | 50×3.0 | CS289×289 | 6pcs | |||||
1.20 m | 50×3.0 | CS289×289 | 6pcs | |||||
9.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 16pcs | |||
2.00 m | 50×3.0 | CL30,289*50 | 8pcs | |||||
1.20 m | 50×3.0 | CL30,289*50 | 8pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs | ||||||
Connect plate with clamp | 3pcs | |||||||
Single clamp | 16pcs | |||||||
Double clamp | 12pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 350.16 | 1pcs | ||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
3.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 2pcs | |||
2.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
1.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
9.00 m Wings Pillar | 2 sets | 3.00 m | FALSE | CS350×350 | 6pcs | |||
2.00 m | FALSE | CS350×350 | 0pcs | |||||
1.00 m | FALSE | CS350×350 | 0pcs | |||||
Wings Tower | Spigot Sleeve Block M | 2pcs | ||||||
Steel Base M | 2pcs | |||||||
Top Section M | 2pcs | |||||||
Manual hoist,BA05 2Tons | 2pcs | |||||||
Spigot Hinge Section,Height 1m | 2pcs | |||||||
Fibre sling,BA04,2 tons 3m | 2pcs | |||||||
Long outrigger | 8pcs | |||||||
Truss Accessory | Conical coupler & Safrty clip & pin | whole set |

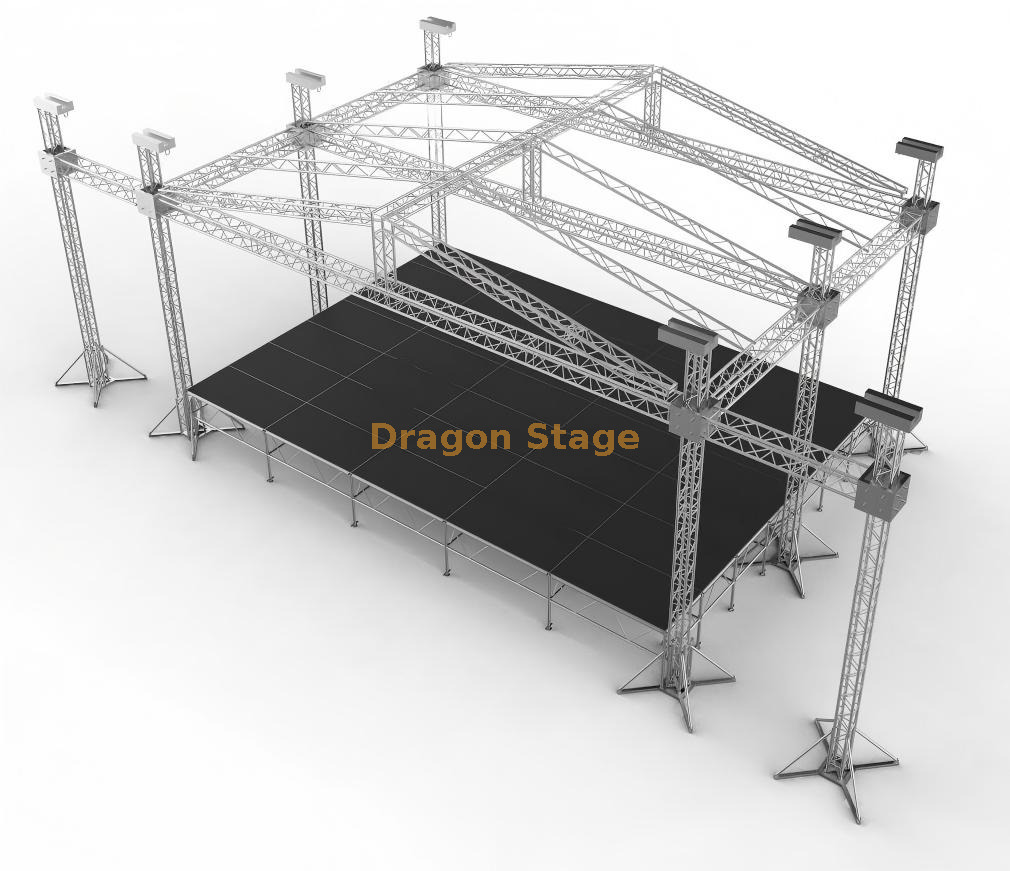

Light Weight, Heavy Loading Aluminum Lighting Stage Roof Truss for Outdoor Events (18x12x10m)
Outdoor events demand robust yet adaptable structures, especially for lighting and stage roofing. The **Light Weight, Heavy Loading Aluminum Lighting Stage Roof Truss (18x12x10m)** fulfills these needs with its exceptional strength, versatility, and ease of use.
This truss system boasts a lightweight aluminum construction, making it easy to transport and assemble. Despite its light weight, it can withstand significant loads, ensuring the secure support of lighting fixtures, sound equipment, and even video screens. The 18x12x10m dimensions offer ample space for elaborate lighting setups and stage designs, making it ideal for large-scale outdoor events.
The truss's modular design allows for quick and flexible configuration, adapting to various stage layouts and event requirements. Its pre-drilled holes and numbered components facilitate a smooth and efficient assembly process. Additionally, the truss is compatible with a wide range of accessories, enabling further customization and functionality.
The Light Weight, Heavy Loading Aluminum Lighting Stage Roof Truss offers numerous benefits for outdoor event organizers:
Strength and stability: Withstands heavy loads, ensuring the safety of equipment and performers.
Lightweight construction: Facilitates easy transportation and handling.
Versatility: Adapts to various stage layouts and event requirements.
Modular design: Enables quick and efficient assembly and disassembly.
Compatibility with accessories: Allows for further customization and functionality.
In conclusion, the **Light Weight, Heavy Loading Aluminum Lighting Stage Roof Truss (18x12x10m)** is an ideal solution for outdoor events requiring a robust, adaptable, and user-friendly structure for lighting and stage roofing. Its combination of strength, versatility, and ease of use makes it a valuable asset for event professionals seeking to create impactful and memorable experiences.
packing weight: 3950kg
packing volume: 36cbm
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
18.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS500×600 | 18pcs | |||
2.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
1.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
12.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 8pcs | |||
2.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
1.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
9.00 m Pillar | 6 sets | 3.00 m | 50x3.0 | CS350×350 | 18pcs | |||
2.00 m | 50x3.0 | CS350×350 | 0pcs | |||||
1.00 m | 50x3.0 | CS350×350 | 0pcs | |||||
beam cube | Spigot cube 500x600 | 0pcs | ||||||
Frame Tower | Spigot Sleeve Block M | 6pcs | ||||||
Steel Base M | 6pcs | |||||||
Top Section M | 6pcs | |||||||
Manual hoist,BA05 2Tons | 6pcs | |||||||
Spigot Hinge Section,Height 1m | 6pcs | |||||||
Fibre sling,BA04,2 tons 3m | 6pcs | |||||||
Long outrigger | 24pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 3 sets | 1.80 m | 50×3.0 | CS289×289 | 3pcs | |||
12.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
9.20 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 12pcs | |||
2.00 m | 50×3.0 | CS289×289 | 6pcs | |||||
1.20 m | 50×3.0 | CS289×289 | 6pcs | |||||
9.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 16pcs | |||
2.00 m | 50×3.0 | CL30,289*50 | 8pcs | |||||
1.20 m | 50×3.0 | CL30,289*50 | 8pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs | ||||||
Connect plate with clamp | 3pcs | |||||||
Single clamp | 16pcs | |||||||
Double clamp | 12pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 350.16 | 1pcs | ||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
3.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 2pcs | |||
2.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
1.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
9.00 m Wings Pillar | 2 sets | 3.00 m | FALSE | CS350×350 | 6pcs | |||
2.00 m | FALSE | CS350×350 | 0pcs | |||||
1.00 m | FALSE | CS350×350 | 0pcs | |||||
Wings Tower | Spigot Sleeve Block M | 2pcs | ||||||
Steel Base M | 2pcs | |||||||
Top Section M | 2pcs | |||||||
Manual hoist,BA05 2Tons | 2pcs | |||||||
Spigot Hinge Section,Height 1m | 2pcs | |||||||
Fibre sling,BA04,2 tons 3m | 2pcs | |||||||
Long outrigger | 8pcs | |||||||
Truss Accessory | Conical coupler & Safrty clip & pin | whole set |
Light Weight, Heavy Loading Aluminum Lighting Stage Roof Truss for Outdoor Events (18x12x10m)
Outdoor events demand robust yet adaptable structures, especially for lighting and stage roofing. The **Light Weight, Heavy Loading Aluminum Lighting Stage Roof Truss (18x12x10m)** fulfills these needs with its exceptional strength, versatility, and ease of use.
This truss system boasts a lightweight aluminum construction, making it easy to transport and assemble. Despite its light weight, it can withstand significant loads, ensuring the secure support of lighting fixtures, sound equipment, and even video screens. The 18x12x10m dimensions offer ample space for elaborate lighting setups and stage designs, making it ideal for large-scale outdoor events.
The truss's modular design allows for quick and flexible configuration, adapting to various stage layouts and event requirements. Its pre-drilled holes and numbered components facilitate a smooth and efficient assembly process. Additionally, the truss is compatible with a wide range of accessories, enabling further customization and functionality.
The Light Weight, Heavy Loading Aluminum Lighting Stage Roof Truss offers numerous benefits for outdoor event organizers:
Strength and stability: Withstands heavy loads, ensuring the safety of equipment and performers.
Lightweight construction: Facilitates easy transportation and handling.
Versatility: Adapts to various stage layouts and event requirements.
Modular design: Enables quick and efficient assembly and disassembly.
Compatibility with accessories: Allows for further customization and functionality.
In conclusion, the **Light Weight, Heavy Loading Aluminum Lighting Stage Roof Truss (18x12x10m)** is an ideal solution for outdoor events requiring a robust, adaptable, and user-friendly structure for lighting and stage roofing. Its combination of strength, versatility, and ease of use makes it a valuable asset for event professionals seeking to create impactful and memorable experiences.
