Mobile Music Stage with Middle Beam 15x8x6

5 0 Reviews

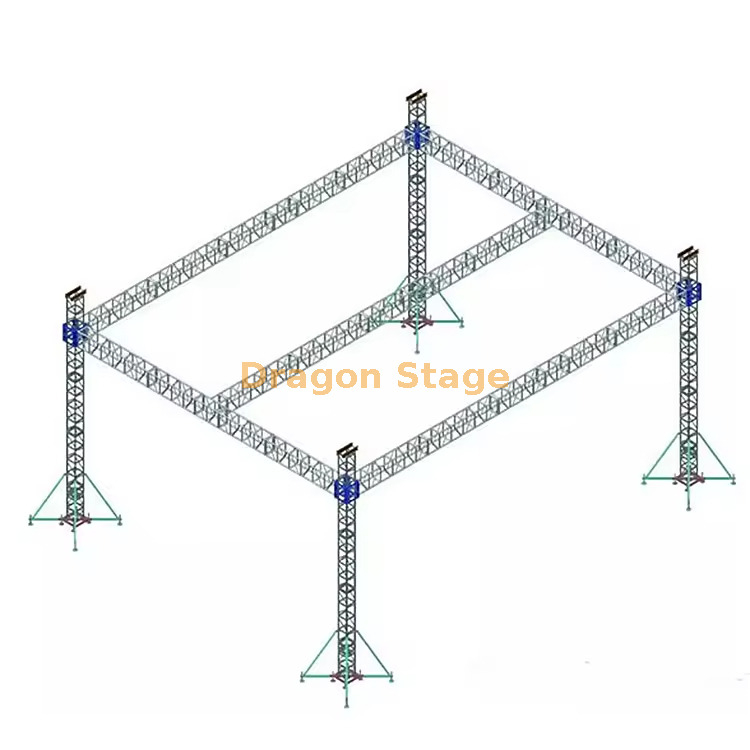

this is a custom music stage setup. the total sizes are 15m long, 8m wide and 6m high with a middle beam.
as the client request, this system can be adjust to 12m long 8m wide and 8m high.
Price: 49000
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Dragon Stage

Mobile Music Stage with Middle Beam

packing weight: 1500kg

packing volume: 24cbm

Item
Specification(squre truss) Qty

length main tube(mm) size(mm)
15.00 m Beam(front) 3 sets 3.00 m 50×3.0 BS500×600 15pcs
2.00 m 50×3.0 BS500×600 0pcs
1.00 m 50×3.0 BS500×600 0pcs
8.00 m Beam(side) 2 sets 3.00 m 50×3.0 BS500×600 4pcs
2.00 m 50×3.0 BS500×600 2pcs
1.00 m 50×3.0 BS500×600 0pcs
5.00 m Pillar 4 sets 3.00 m 50x3.0 BS350×350 4pcs
2.00 m 50x3.0 BS350×350 4pcs
1.00 m 50x3.0 BS350×350 0pcs
beam cube cube 500x600 2pcs
Frame Tower Bolt Truss Sleeve Block M 4pcs
Steel Base M 4pcs
Top Section M 4pcs
Manual hoist,BA05 2Tons 4pcs
Spigot Hinge Section,Height 1m 4pcs
Fibre sling,BA04,2 tons 3m 4pcs
Long outrigger 16pcs

The concept of a mobile music stage with a middle beam is an innovative and practical solution for outdoor events and performances. This unique design offers several advantages over traditional stages, making it an ideal choice for a wide range of events and venues.


One of the key benefits of a mobile music stage with a middle beam is its versatility. Unlike fixed stages, which are limited to a single location, a mobile stage can be easily transported to different venues, allowing for greater flexibility in event planning. This is particularly useful for outdoor events such as music festivals, community concerts, and street fairs, where the stage needs to be set up and taken down quickly and efficiently.


The middle beam design of the stage also offers several advantages. By providing additional support and stability, the middle beam allows for a larger stage area, making it suitable for larger performances and events. This is particularly important for music concerts and other live performances, where a spacious stage is essential for accommodating multiple performers and equipment.


Furthermore, the middle beam design also allows for greater flexibility in stage setup and configuration. By providing a central anchor point, the middle beam enables the stage to be easily customized to fit the specific needs of each event. This can include adding additional lighting and sound equipment, as well as accommodating different stage layouts and performance setups.


In addition to its practical benefits, a mobile music stage with a middle beam also offers a visually striking and professional appearance. The sleek and modern design of the stage, combined with its robust construction, creates a strong and impressive presence at any event. This not only enhances the overall experience for performers and audiences, but also adds to the overall atmosphere and ambiance of the event.


The portability and versatility of a mobile music stage with a middle beam make it an ideal choice for a wide range of events and venues. Whether it's a small community concert or a large-scale music festival, this innovative stage design offers the perfect combination of practicality, flexibility, and visual appeal. With its ability to easily adapt to different event requirements and its professional appearance, a mobile music stage with a middle beam is a valuable addition to any outdoor event.
