Dragon Stage

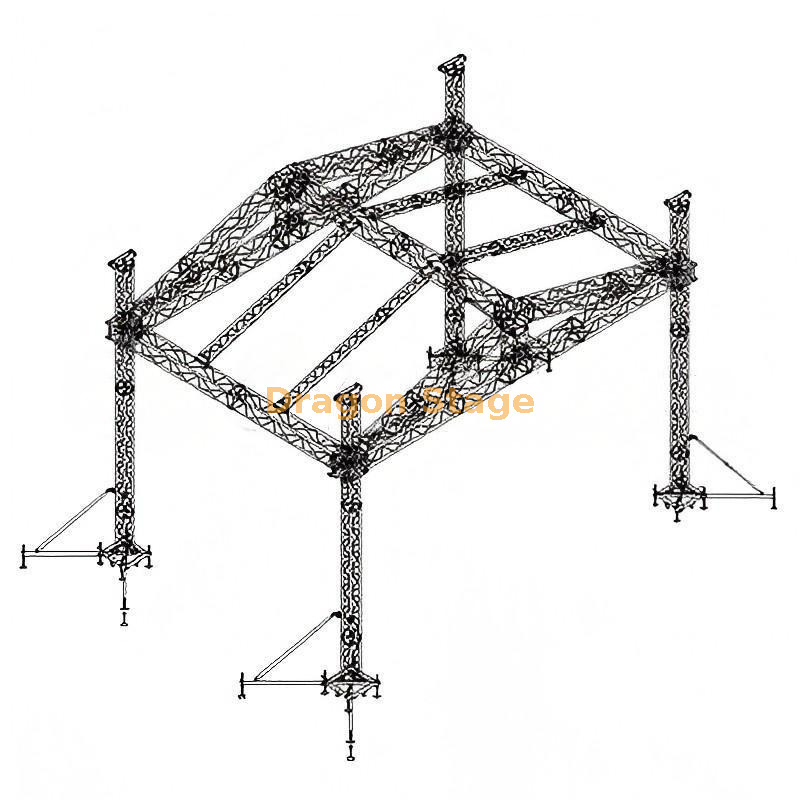

Truss Specifications The Outdoor Aluminum Trusses Stage 40x20x30ft boasts a formidable set of dimensions that make it a standout choice for events requiring a substantial and visually striking setup. The truss itself spans 40 feet in width at the front, providing ample space for accommodating a diverse array of equipment and decorations. With a front width of 20 feet, the truss offers a balanced and symmetrical design that enhances its structural integrity and aesthetic appeal. Rising to a towering height of 30 feet, this structure commands attention and creates a commanding presence that is sure to captivate audiences and event attendees.
Stage Platform Details Complementing the impressive truss system is a meticulously crafted stage platform that adds another layer of functionality and versatility to the overall setup. The stage platform features a height range of 3 to 6 feet, allowing for customizable configurations that cater to the specific requirements of different events and performances. With a front width of 36 feet, the stage platform provides a spacious and stable foundation for performers, speakers, and presenters to showcase their talents and engage with the audience effectively. Additionally, the 16 feet width on the side ensures ample space for backstage activities, equipment storage, and logistical operations, contributing to the seamless execution of events of varying scales and complexities.
Applications and Benefits The Outdoor Aluminum Trusses Stage 40x20x30ft offers a myriad of applications across a wide spectrum of events and productions, ranging from concerts and music festivals to corporate conferences and trade shows. Its robust construction, coupled with the flexibility of the truss and stage platform configurations, makes it an ideal choice for outdoor venues where reliability, safety, and visual impact are paramount. Event planners, production companies, and venue managers can leverage the versatility of this setup to create immersive and memorable experiences for attendees while ensuring the smooth and efficient operation of the event.
Moreover, the lightweight nature of aluminum trusses makes them easy to transport, assemble, and dismantle, reducing labor costs and logistical challenges associated with event setup and teardown. The corrosion-resistant properties of aluminum further enhance the longevity and durability of the truss system, ensuring that it remains in top condition even after repeated use in diverse environmental conditions. Additionally, the modular design of the truss components allows for easy customization and reconfiguration, enabling event organizers to adapt to changing requirements and spatial constraints with ease and efficiency.
packing weight: 1500kg
packing volume: 14cbm
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs | |||
2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs | |||
2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
8.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
beam cube | Spigot cube 389x389 | 0pcs | ||||||
Frame Tower | Spigot Sleeve Block S | 4pcs | ||||||
Steel Base S | 4pcs | |||||||
Top Section S | 4pcs | |||||||
Manual hoist,BA05 2Tons | 4pcs | |||||||
Spigot Hinge Section,Height 1m | 4pcs | |||||||
Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
Long outrigger | 16pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 2 sets | 1.20 m | 50×3.0 | CS289×289 | 2pcs | |||
6.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
1.20 m | 50×3.0 | CS289×289 | 4pcs | |||||
6.20 m Ladder truss | 4 sets | 3.00 m | 50×3.0 | CL30,289*50 | 4pcs | |||
2.00 m | 50×3.0 | CL30,289*50 | 4pcs | |||||
1.20 m | 50×3.0 | CL30,289*50 | 4pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
Connect plate with clamp | 2pcs | |||||||
Single clamp | 8pcs | |||||||
Double clamp | 8pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 149.76 | 1pcs |
packing weight: 1250kg
packing volume: 8cbm
Item | Specification | Quantity | |||
Aluminium assembly stage | topping: 4x8ft (1.22x2.44m) | wooden | 18 pcs | ||
1.22m stage brace | 27 pcs | ||||
2.44m stage brace | 20 pcs | ||||
stand with extendable tube | 30 pcs | ||||
Stage adjustable base | 30 pcs | ||||
Stage Stair | wooden topping | total | 7 | steps | 2 pcs |
Truss Specifications The Outdoor Aluminum Trusses Stage 40x20x30ft boasts a formidable set of dimensions that make it a standout choice for events requiring a substantial and visually striking setup. The truss itself spans 40 feet in width at the front, providing ample space for accommodating a diverse array of equipment and decorations. With a front width of 20 feet, the truss offers a balanced and symmetrical design that enhances its structural integrity and aesthetic appeal. Rising to a towering height of 30 feet, this structure commands attention and creates a commanding presence that is sure to captivate audiences and event attendees.
Stage Platform Details Complementing the impressive truss system is a meticulously crafted stage platform that adds another layer of functionality and versatility to the overall setup. The stage platform features a height range of 3 to 6 feet, allowing for customizable configurations that cater to the specific requirements of different events and performances. With a front width of 36 feet, the stage platform provides a spacious and stable foundation for performers, speakers, and presenters to showcase their talents and engage with the audience effectively. Additionally, the 16 feet width on the side ensures ample space for backstage activities, equipment storage, and logistical operations, contributing to the seamless execution of events of varying scales and complexities.
Applications and Benefits The Outdoor Aluminum Trusses Stage 40x20x30ft offers a myriad of applications across a wide spectrum of events and productions, ranging from concerts and music festivals to corporate conferences and trade shows. Its robust construction, coupled with the flexibility of the truss and stage platform configurations, makes it an ideal choice for outdoor venues where reliability, safety, and visual impact are paramount. Event planners, production companies, and venue managers can leverage the versatility of this setup to create immersive and memorable experiences for attendees while ensuring the smooth and efficient operation of the event.
Moreover, the lightweight nature of aluminum trusses makes them easy to transport, assemble, and dismantle, reducing labor costs and logistical challenges associated with event setup and teardown. The corrosion-resistant properties of aluminum further enhance the longevity and durability of the truss system, ensuring that it remains in top condition even after repeated use in diverse environmental conditions. Additionally, the modular design of the truss components allows for easy customization and reconfiguration, enabling event organizers to adapt to changing requirements and spatial constraints with ease and efficiency.
packing weight: 1500kg
packing volume: 14cbm
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs | |||
2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs | |||
2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
8.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
beam cube | Spigot cube 389x389 | 0pcs | ||||||
Frame Tower | Spigot Sleeve Block S | 4pcs | ||||||
Steel Base S | 4pcs | |||||||
Top Section S | 4pcs | |||||||
Manual hoist,BA05 2Tons | 4pcs | |||||||
Spigot Hinge Section,Height 1m | 4pcs | |||||||
Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
Long outrigger | 16pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 2 sets | 1.20 m | 50×3.0 | CS289×289 | 2pcs | |||
6.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
1.20 m | 50×3.0 | CS289×289 | 4pcs | |||||
6.20 m Ladder truss | 4 sets | 3.00 m | 50×3.0 | CL30,289*50 | 4pcs | |||
2.00 m | 50×3.0 | CL30,289*50 | 4pcs | |||||
1.20 m | 50×3.0 | CL30,289*50 | 4pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
Connect plate with clamp | 2pcs | |||||||
Single clamp | 8pcs | |||||||
Double clamp | 8pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 149.76 | 1pcs |
packing weight: 1250kg
packing volume: 8cbm
Item | Specification | Quantity | |||
Aluminium assembly stage | topping: 4x8ft (1.22x2.44m) | wooden | 18 pcs | ||
1.22m stage brace | 27 pcs | ||||
2.44m stage brace | 20 pcs | ||||
stand with extendable tube | 30 pcs | ||||
Stage adjustable base | 30 pcs | ||||
Stage Stair | wooden topping | total | 7 | steps | 2 pcs |
