DRAGON STAGE
packing weight:3350kg
packing volume: 26cbm
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
12.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS389×389 | 12pcs | |||
2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
10.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs | |||
2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 2pcs | |||||
6.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 12pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
beam cube | Spigot cube 389x389 | 0pcs | ||||||
Frame Tower | Spigot Sleeve Block S | 6pcs | ||||||
Steel Base S | 6pcs | |||||||
Top Section S | 6pcs | |||||||
Manual hoist,BA05 2Tons | 6pcs | |||||||
Spigot Hinge Section,Height 1m | 6pcs | |||||||
Fibre sling,BA04,2 tons 3m | 6pcs | |||||||
Long outrigger | 24pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 3 sets | 1.20 m | 50×3.0 | CS289×289 | 3pcs | |||
10.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 3pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 1pcs | |||||
6.20 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs | |||
2.00 m | 50×3.0 | CS289×289 | 6pcs | |||||
1.20 m | 50×3.0 | CS289×289 | 6pcs | |||||
6.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||
2.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
1.20 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs | ||||||
Connect plate with clamp | 3pcs | |||||||
Single clamp | 12pcs | |||||||
Double clamp | 12pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 438.96 | 1pcs | ||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
7.00 m Wings Beam | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs | |||
2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 4pcs | |||||
6.00 m Wings Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
Wings Tower | Spigot Sleeve Block S | 4pcs | ||||||
Steel Base S | 4pcs | |||||||
Top Section S | 4pcs | |||||||
Manual hoist,BA05 2Tons | 4pcs | |||||||
Spigot Hinge Section,Height 1m | 4pcs | |||||||
Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
Long outrigger | 16pcs | |||||||
Truss Accessory | Conical coupler & Safrty clip & pin | whole set |

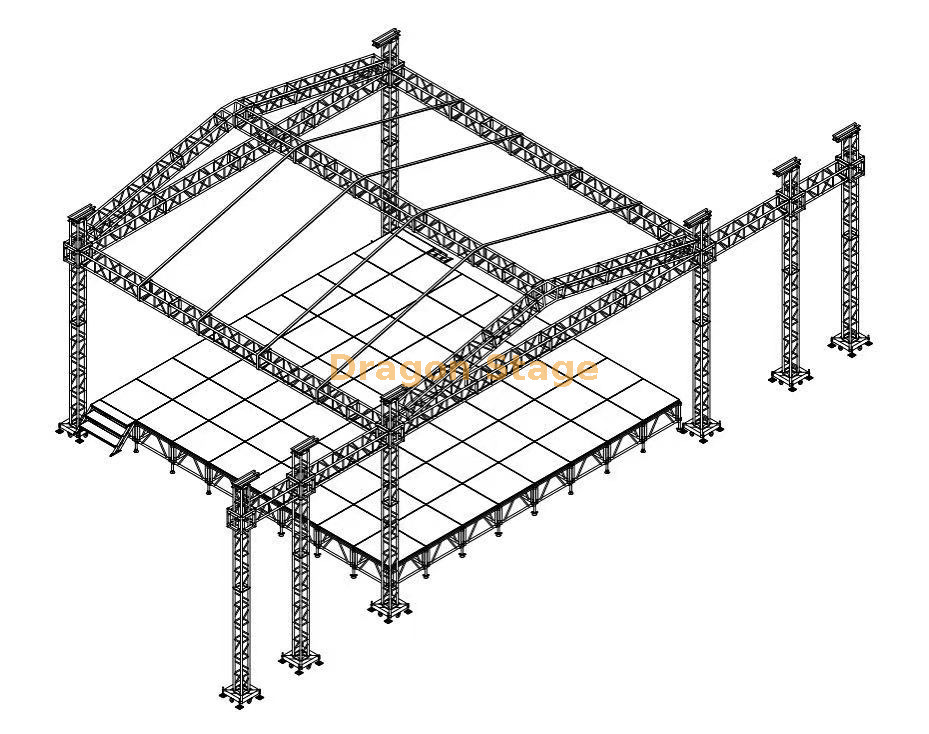

The aluminum roof truss is designed to withstand the demands of outdoor environments. Its sturdy construction ensures stability, even in challenging weather conditions. This is particularly important for concerts held in open-air venues, where wind and rain can pose a significant threat to the stage setup.
The lightweight nature of the aluminum truss makes it easy to transport and assemble. This is a key advantage for concert organizers, as it allows for efficient setup and dismantling. The wings add an extra dimension to the stage, providing a designated area for lighting and sound equipment. This not only enhances the overall aesthetic appeal but also ensures optimal sound and lighting distribution throughout the venue.
Furthermore, the aluminum truss is versatile in its design, allowing for customization to suit specific event requirements. Concert organizers can choose from a range of sizes and configurations to create the desired stage layout. This flexibility ensures that the stage can accommodate different types of performances, from small-scale gigs to large-scale music festivals.
In addition to its practical benefits, the aluminum truss with wings also adds an element of visual appeal to the concert stage. Its sleek and modern design complements the overall aesthetics of the event, creating an immersive experience for both performers and audience members. The use of aluminum also allows for creative lighting effects, further enhancing the visual impact of the stage setup.
In conclusion, the outdoor concert stage aluminum roof truss with wings is an essential component in the construction of outdoor concert stages. Its durable and lightweight design, along with the added functionality of wings, makes it an ideal choice for outdoor events. Its versatility, ease of assembly, and visual appeal contribute to creating memorable and successful concerts.
