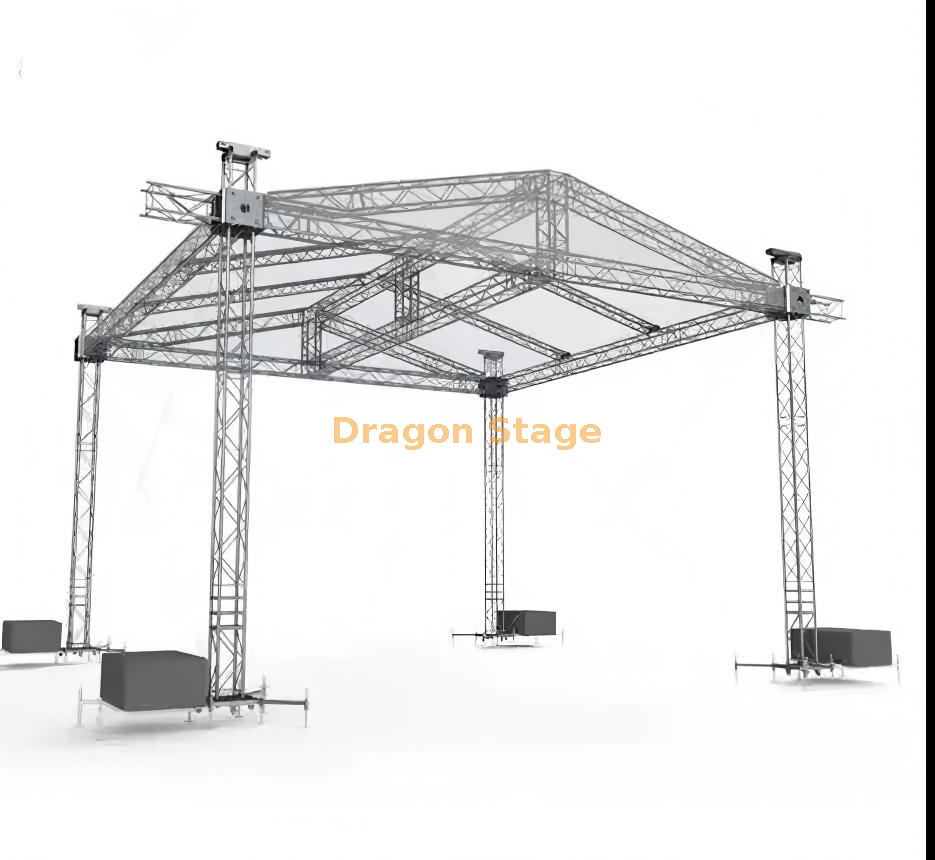

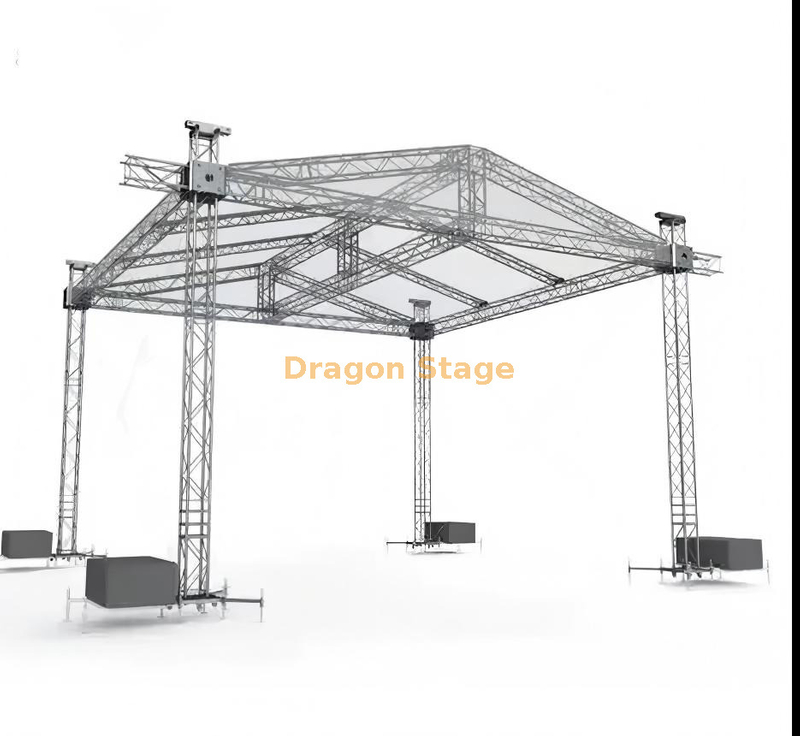

**Aluminum Speakers Hanging Truss Roofing System**
**Introduction**
The Aluminum Speakers Hanging Truss Roofing System is a versatile and robust structure designed to support and suspend speaker systems, lighting fixtures, and other equipment in a variety of indoor and outdoor applications. Its lightweight and durable aluminum construction ensures longevity and ease of installation, while its modular design allows for customization to meet specific requirements.
**System Specifications**
The system consists of a primary truss structure that measures 8 meters in length, 6 meters in depth, and 6 meters in height. This primary truss is constructed from 400mm x 400mm spigot truss, providing exceptional strength and stability. Additionally, a 2-meter speaker truss is integrated into the system for mounting and suspending speaker enclosures.
**Materials and Construction**
The Aluminum Speakers Hanging Truss Roofing System is fabricated using high-grade aluminum alloys that offer a combination of strength, lightness, and corrosion resistance. The truss components are precision-engineered and manufactured to ensure optimal load-bearing capacity and structural integrity. The spigot connections between the truss elements provide secure and reliable joints, allowing for easy assembly and disassembly.
**Load Capacity**
The system is designed to withstand significant loads, including the weight of speaker enclosures, lighting fixtures, and any additional equipment. The load capacity is carefully calculated and certified to meet industry standards and ensure the safety of the suspended equipment and personnel.
**Versatility and Customization**
The modular design of the Aluminum Speakers Hanging Truss Roofing System allows for customization to suit various applications. The primary truss can be extended or shortened as needed, and additional speaker trusses can be added to accommodate larger sound systems. The system can also be configured with different types of truss, such as box truss or ladder truss, to meet specific aesthetic or functional requirements.
**Applications**
The Aluminum Speakers Hanging Truss Roofing System is suitable for a wide range of applications, including:
* Live music events
* Concerts
* Festivals
* Corporate events
* Theaters
* Nightclubs
* Houses of worship
**Benefits**
The Aluminum Speakers Hanging Truss Roofing System offers numerous benefits, including:
* **Lightweight and durable:** The aluminum construction ensures ease of handling and transportation while providing exceptional strength.
* **Modular design:** The system can be customized to meet specific requirements, allowing for flexibility in design and installation.
* **High load capacity:** The system is engineered to withstand significant loads, providing confidence in the safety of suspended equipment.
* **Corrosion resistance:** The aluminum materials resist corrosion, ensuring longevity and reliability in various environments.
* **Easy assembly and disassembly:** The spigot connections facilitate quick and efficient installation and removal.
**Conclusion**
The Aluminum Speakers Hanging Truss Roofing System is an essential component for creating professional-grade audio and lighting systems. Its lightweight, durable, and versatile design makes it an ideal solution for a wide range of applications, from small events to large-scale productions. The system provides peace of mind with its certified load capacity and corrosion resistance, ensuring the safety of equipment and personnel. Whether you are a sound engineer, lighting designer, or venue manager, the Aluminum Speakers Hanging Truss Roofing System will empower you to create stunning and unforgettable events.
packing weight:1320kg
packing volume: 12cbm
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
8.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs | |||
2.00 m | 50×3.0 | CS389×389 | 2pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs | |||
2.00 m | 50×3.0 | CS389×389 | 2pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
beam cube | Spigot cube 389x389 | 0pcs | ||||||
Frame Tower | Spigot Sleeve Block S | 4pcs | ||||||
Steel Base S | 4pcs | |||||||
Top Section S | 4pcs | |||||||
Manual hoist,BA05 2Tons | 4pcs | |||||||
Spigot Hinge Section,Height 1m | 4pcs | |||||||
Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
Long outrigger | 16pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 2 sets | .80 m | 50×3.0 | CS289×289 | 2pcs | |||
6.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
4.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 0pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
2.20 m | 50×3.0 | CS289×289 | 4pcs | |||||
4.20 m Ladder truss | 4 sets | 3.00 m | 50×3.0 | CL30,289*50 | 0pcs | |||
2.00 m | 50×3.0 | CL30,289*50 | 4pcs | |||||
2.20 m | 50×3.0 | CL30,289*50 | 4pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
Connect plate with clamp | 2pcs | |||||||
Single clamp | 8pcs | |||||||
Double clamp | 8pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 103.36 | 1pcs |
