The Design and Functionality of a Custom Outdoor Roof Truss Concert Stage

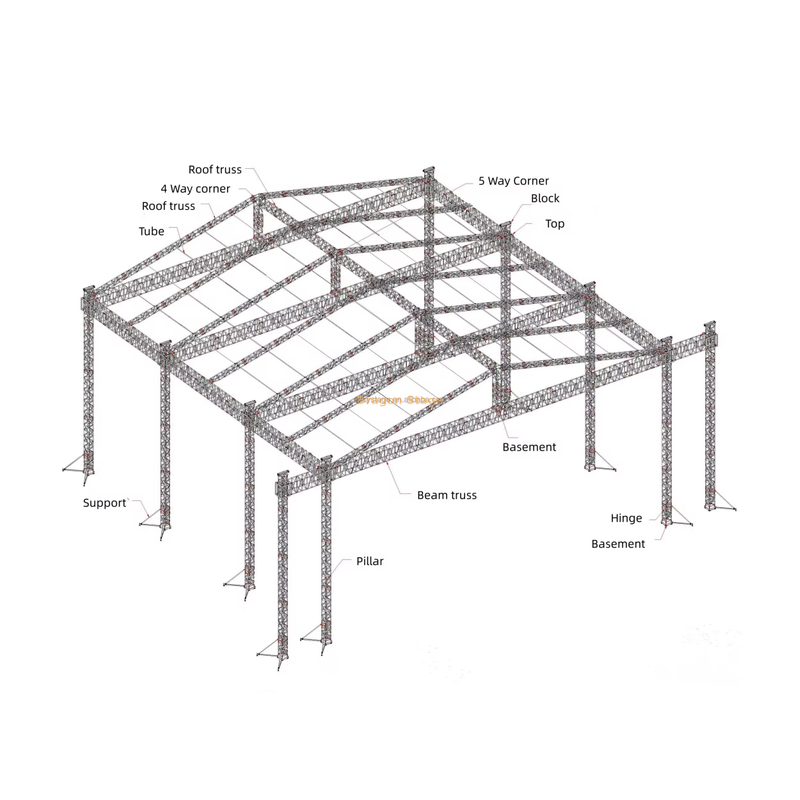

Introduction In the realm of outdoor events and performances, the construction and design of a stage play a crucial role in ensuring the success and safety of the event. One such innovative and custom-built structure is the Outdoor Roof Truss Concert Stage, measuring 15 meters in length, 15 meters in depth, and standing tall at 10 meters with 8 supporting pillars. This stage is not only a platform for artistic expression but also a testament to engineering excellence and architectural ingenuity.
Structure and Dimensions The Outdoor Roof Truss Concert Stage stands as a testament to meticulous planning and precision engineering. With a length of 15 meters and a depth of 15 meters, the stage provides ample space for performers to showcase their talents and entertain the audience. The towering height of 10 meters ensures that the stage commands attention and provides a grand backdrop for any event.
The stage is supported by 8 pillars strategically placed to bear the weight of the structure and ensure its stability. These pillars not only serve a functional purpose but also add to the aesthetic appeal of the stage, giving it a sense of grandeur and solidity.
In addition to the main stage structure, the Outdoor Roof Truss Concert Stage features two sound speaker tower wings on each side, measuring 3 meters in width. These speaker towers are designed to enhance the audio experience for both performers and audience members, ensuring that the music and performances are heard loud and clear throughout the venue.
Functionality and Design The design of the Outdoor Roof Truss Concert Stage is a harmonious blend of form and function. The truss system used in the construction of the stage not only provides structural support but also adds a touch of elegance and sophistication to the overall design. The truss system allows for the stage to be assembled and disassembled quickly and efficiently, making it an ideal choice for outdoor events and concerts where time is of the essence.
Moreover, the open-air design of the stage allows for unrestricted views of the performers from all angles, ensuring that every member of the audience has an optimal viewing experience. The height of the stage, coupled with the strategically placed speaker towers, ensures that the sound carries effectively throughout the venue, creating an immersive audio experience for all attendees.
packing weight: 4000kg
packing volume: 23cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 15.00 m Beam(front) | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 20pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 15.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 10pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 9.00 m Pillar | 8 sets | 3.00 m | 50×3.0 | CS289×289 | 24pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | Spigot cube 389x389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 8pcs |
| Steel Base S | 8pcs |
| Top Section S | 8pcs |
| Manual hoist,BA05 2Tons | 8pcs |
| Spigot Hinge Section,Height 1m | 8pcs |
| Fibre sling,BA04,2 tons 3m | 8pcs |
| Long outrigger | 32pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 4 sets | 1.50 m | 50×3.0 | CS289×289 | 4pcs |
| 15.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 5pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 7.70 m Oblique Beam | 8 sets | 3.00 m | 50×3.0 | CS289×289 | 16pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.70 m | 50×3.0 | CS289×289 | 8pcs |
| 7.70 m Ladder truss | 10 sets | 3.00 m | 50×3.0 | CL30,289*50 | 20pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 1.70 m | 50×3.0 | CL30,289*50 | 10pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 2pcs |
| Connect plate with clamp | 4pcs |
| Single clamp | 20pcs |
| Double clamp | 16pcs |
| roof canopy material:pvc, Blue Colour or customized. | 346.86 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 3.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 2pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 9.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
