Dragon Stage

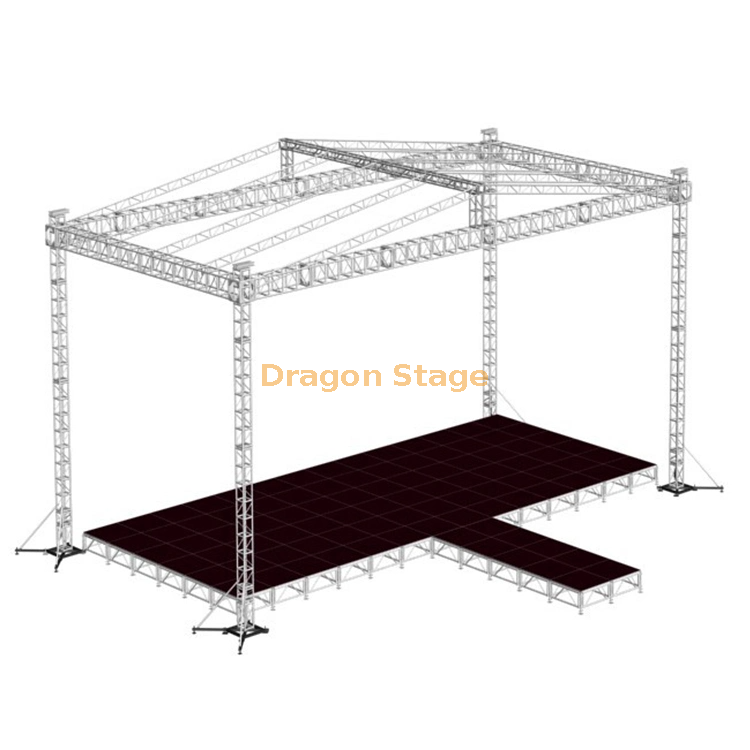

The Concert Mobile Portable T Stage with Roof Truss is a remarkable innovation in the field of concert staging. Designed to provide a versatile and efficient solution for outdoor events, this stage offers both convenience and functionality.
packing weight:2250kg
packing volume: 21cbm
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
18.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 12pcs | |||
2.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
1.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 4pcs | |||
2.00 m | 50×3.0 | CS500×600 | 2pcs | |||||
1.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
7.00 m Pillar | 4 sets | 3.00 m | 50x3.0 | CS350×350 | 8pcs | |||
2.00 m | 50x3.0 | CS350×350 | 0pcs | |||||
1.00 m | 50x3.0 | CS350×350 | 4pcs | |||||
beam cube | Spigot cube 500x600 | 0pcs | ||||||
Frame Tower | Spigot Sleeve Block M | 4pcs | ||||||
Steel Base M | 4pcs | |||||||
Top Section M | 4pcs | |||||||
Manual hoist,BA05 2Tons | 4pcs | |||||||
Spigot Hinge Section,Height 1m | 4pcs | |||||||
Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
Long outrigger | 16pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 2 sets | 1.80 m | 50×3.0 | CS289×289 | 2pcs | |||
8.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
2.00 m | 50×3.0 | CS289×289 | 1pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
9.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
1.20 m | 50×3.0 | CS289×289 | 4pcs | |||||
9.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 12pcs | |||
2.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
1.20 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
Connect plate with clamp | 2pcs | |||||||
Single clamp | 12pcs | |||||||
Double clamp | 8pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 266.96 | 1pcs |
The T-shaped design of the stage provides ample space for performers to showcase their talents. With a spacious main stage and two side wings, it offers a wide range of possibilities for creative performances. The roof truss system adds another dimension to the stage, allowing for the installation of lighting, sound equipment, and other production elements. This ensures that the audience can enjoy a visually stunning and immersive experience.
packing weight:3650kg
packing volume:23cbm
Item | Specification | Quantity | |||
Aluminium assembly stage | topping: 4x4ft (1.22x1.22m) | wooden | 84 pcs | ||
1.22m stage brace | 188 pcs | ||||
stand with extendable tube | 105 pcs | ||||
Stage adjustable base | 105 pcs | ||||
Stage Stair | wooden topping | total | 8 | steps | 2 pcs |
Item | Specification | Quantity | |||
Aluminium assembly stage | topping: 4x4ft (1.22x1.22m) | wooden | 10 pcs | ||
1.22m stage brace | 27 pcs | ||||
stand with extendable tube | 18 pcs | ||||
Stage adjustable base | 18 pcs |
The Concert Mobile Portable T Stage with Roof Truss is a remarkable innovation in the field of concert staging. Designed to provide a versatile and efficient solution for outdoor events, this stage offers both convenience and functionality.
packing weight:2250kg
packing volume: 21cbm
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
18.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 12pcs | |||
2.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
1.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 4pcs | |||
2.00 m | 50×3.0 | CS500×600 | 2pcs | |||||
1.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
7.00 m Pillar | 4 sets | 3.00 m | 50x3.0 | CS350×350 | 8pcs | |||
2.00 m | 50x3.0 | CS350×350 | 0pcs | |||||
1.00 m | 50x3.0 | CS350×350 | 4pcs | |||||
beam cube | Spigot cube 500x600 | 0pcs | ||||||
Frame Tower | Spigot Sleeve Block M | 4pcs | ||||||
Steel Base M | 4pcs | |||||||
Top Section M | 4pcs | |||||||
Manual hoist,BA05 2Tons | 4pcs | |||||||
Spigot Hinge Section,Height 1m | 4pcs | |||||||
Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
Long outrigger | 16pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 2 sets | 1.80 m | 50×3.0 | CS289×289 | 2pcs | |||
8.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
2.00 m | 50×3.0 | CS289×289 | 1pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
9.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
1.20 m | 50×3.0 | CS289×289 | 4pcs | |||||
9.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 12pcs | |||
2.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
1.20 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
Connect plate with clamp | 2pcs | |||||||
Single clamp | 12pcs | |||||||
Double clamp | 8pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 266.96 | 1pcs |
The T-shaped design of the stage provides ample space for performers to showcase their talents. With a spacious main stage and two side wings, it offers a wide range of possibilities for creative performances. The roof truss system adds another dimension to the stage, allowing for the installation of lighting, sound equipment, and other production elements. This ensures that the audience can enjoy a visually stunning and immersive experience.
packing weight:3650kg
packing volume:23cbm
Item | Specification | Quantity | |||
Aluminium assembly stage | topping: 4x4ft (1.22x1.22m) | wooden | 84 pcs | ||
1.22m stage brace | 188 pcs | ||||
stand with extendable tube | 105 pcs | ||||
Stage adjustable base | 105 pcs | ||||
Stage Stair | wooden topping | total | 8 | steps | 2 pcs |
Item | Specification | Quantity | |||
Aluminium assembly stage | topping: 4x4ft (1.22x1.22m) | wooden | 10 pcs | ||
1.22m stage brace | 27 pcs | ||||
stand with extendable tube | 18 pcs | ||||
Stage adjustable base | 18 pcs |
