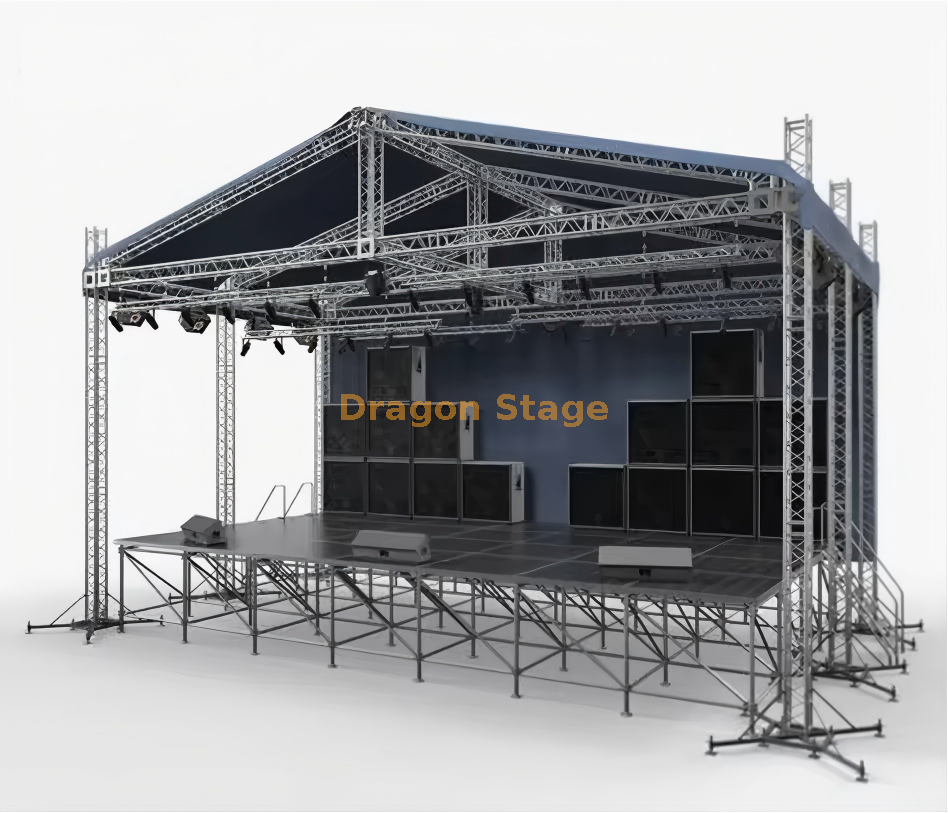

Custom Portable Aluminum Triangle Shape Roof Trusses for Concert Event 24x20x8m

5 0 Reviews
Custom Portable Aluminum Triangle Shape Roof Trusses for Concert Event 24x20x8m
Stage Lighting Truss Arched Roof Truss for Concert Stage Triangle Roof Outdoor Truss System

Price: 191925  -  221910
Features:
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Dragon Stage

packing weight: 4600kg

packing volume: 54cbm

Item
Specification(squre truss)Qty

lengthmain tube(mm)size(mm)
24.00 m Beam(front)3 sets3.00 m50×4.0CS600×76024pcs
2.00 m50×4.0CS600×7600pcs
1.00 m50×4.0CS600×7600pcs
20.00 m Beam(side)2 sets3.00 m50×4.0CS600×76012pcs
2.00 m50×4.0CS600×7602pcs
1.00 m50×4.0CS600×7600pcs
7.00 m Pillar6 sets3.00 mFALSECS450×45012pcs
2.00 mFALSECS450×4500pcs
1.00 mFALSECS450×4506pcs
beam cubeSpigot cube 600x7600pcs
Frame TowerSpigot Sleeve Block L6pcs
Steel Base L6pcs
Top Section L6pcs
Manual hoist,BA05 2Tons6pcs
Spigot Hinge Section,Height 1m6pcs
Fibre sling,BA04,2 tons 3m6pcs
Long outrigger24pcs
Item
Specification(squre truss)Qty

lengthmain tube(mm)size(mm)
Roof Pillar3 sets2.40 m50×3.0CS289×2893pcs
20.00 m Top Beam1 sets3.00 m50×3.0CS289×2896pcs
2.00 m50×3.0CS289×2891pcs
1.00 m50×3.0CS289×2890pcs
12.20 m Oblique Beam6 sets3.00 m50×3.0CS289×28918pcs
2.00 m50×3.0CS289×2896pcs
1.20 m50×3.0CS289×2896pcs
12.20 m Ladder truss16 sets3.00 m50×3.0CL30,289*5048pcs
2.00 m50×3.0CL30,289*5016pcs
1.20 m50×3.0CL30,289*5016pcs
Roof Components
roof conner 4 ways, use for roof beam trussCS289×2892pcs

roof conner 5 ways, use for roof beam trussCS289×2891pcs

Connect plate with clamp3pcs

Single clamp32pcs

Double clamp12pcs

roof canopy material:pvc, Blue Colour or customized.683.361pcs

packing weight: 8400kg

packing volume: 55cbm

ItemSpecificationQuantity
Aluminium assembly stagetopping: 4x8ft
(1.22x2.44m)
wooden144 pcs
1.22m stage brace160 pcs
2.44m stage brace153 pcs
stand with extendable tube170 pcs
Stage adjustable base170 pcs
Stage Stairwooden toppingtotal8stepsadjustable to the stage height2 pcs
