Dragon Stage
The dimensions of the roof stage, with its substantial length, depth, and height, not only provide ample space for performers to move and engage with the audience but also offer a visually striking backdrop that complements the artistic expression unfolding on stage. The expansive dimensions create a sense of grandeur and presence, elevating the overall impact of the performance and captivating the attention of onlookers.
Furthermore, the inclusion of two wings specifically designed for speaker systems tailored for outdoor environments underscores the importance of delivering high-quality sound reinforcement to ensure an immersive and engaging auditory experience for attendees. By dedicating separate wings for the placement of speakers, the stage design effectively optimizes acoustic performance and sound distribution, catering to the unique acoustical requirements of outdoor settings.

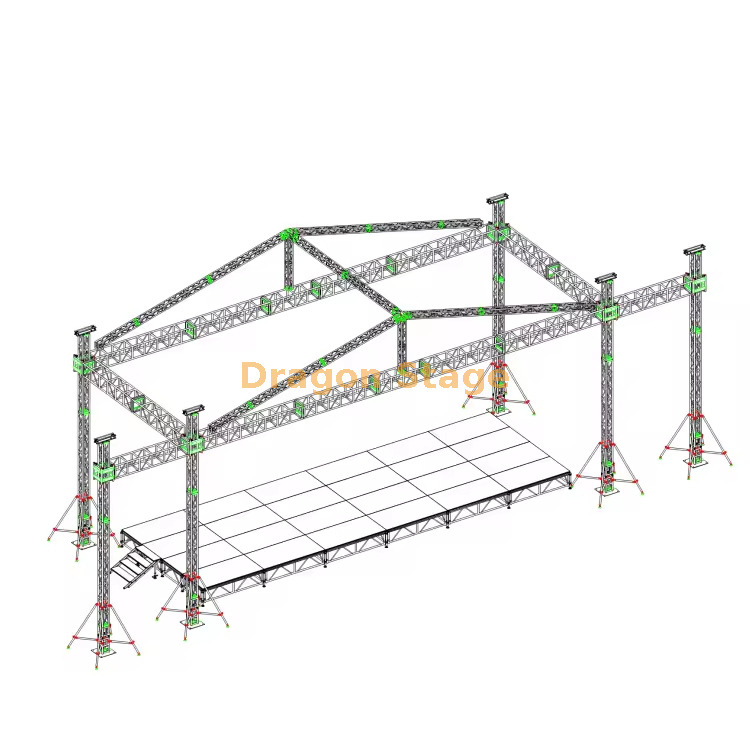

In essence, the integration of a roof stage with dimensions of 20 meters in length, 8 meters in depth, and 8 meters in height, along with two wings designated for speaker systems tailored for outdoor use, represents a harmonious blend of form and function in the realm of concert stage design. This meticulously crafted architectural ensemble not only sets the stage for memorable musical performances but also underscores the importance of creating immersive and captivating experiences that resonate with audiences on a profound level.
packing weight: 2900kg
packing volume: 26cbm
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
20.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 12pcs | |||
2.00 m | 50×3.0 | CS500×600 | 2pcs | |||||
1.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 4pcs | |||
2.00 m | 50×3.0 | CS500×600 | 2pcs | |||||
1.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
7.00 m Pillar | 4 sets | 3.00 m | 50x3.0 | CS350×350 | 8pcs | |||
2.00 m | 50x3.0 | CS350×350 | 0pcs | |||||
1.00 m | 50x3.0 | CS350×350 | 4pcs | |||||
beam cube | Spigot cube 500x600 | 0pcs | ||||||
Frame Tower | Spigot Sleeve Block M | 4pcs | ||||||
Steel Base M | 4pcs | |||||||
Top Section M | 4pcs | |||||||
Manual hoist,BA05 2Tons | 4pcs | |||||||
Spigot Hinge Section,Height 1m | 4pcs | |||||||
Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
Long outrigger | 16pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 2 sets | 2.00 m | 50×3.0 | CS289×289 | 2pcs | |||
8.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
2.00 m | 50×3.0 | CS289×289 | 1pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
10.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
2.20 m | 50×3.0 | CS289×289 | 4pcs | |||||
10.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 12pcs | |||
2.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
2.20 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
Connect plate with clamp | 2pcs | |||||||
Single clamp | 12pcs | |||||||
Double clamp | 8pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 297.76 | 1pcs | ||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
3.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 2pcs | |||
2.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
1.00 m | 50×3.0 | CS500×600 | 0pcs | |||||
7.00 m Wings Pillar | 2 sets | 3.00 m | FALSE | CS350×350 | 4pcs | |||
2.00 m | FALSE | CS350×350 | 0pcs | |||||
1.00 m | FALSE | CS350×350 | 2pcs | |||||
Wings Tower | Spigot Sleeve Block M | 2pcs | ||||||
Steel Base M | 2pcs | |||||||
Top Section M | 2pcs | |||||||
Manual hoist,BA05 2Tons | 2pcs | |||||||
Spigot Hinge Section,Height 1m | 2pcs | |||||||
Fibre sling,BA04,2 tons 3m | 2pcs | |||||||
Long outrigger | 8pcs | |||||||
Truss Accessory | Conical coupler & Safrty clip & pin | whole set |
