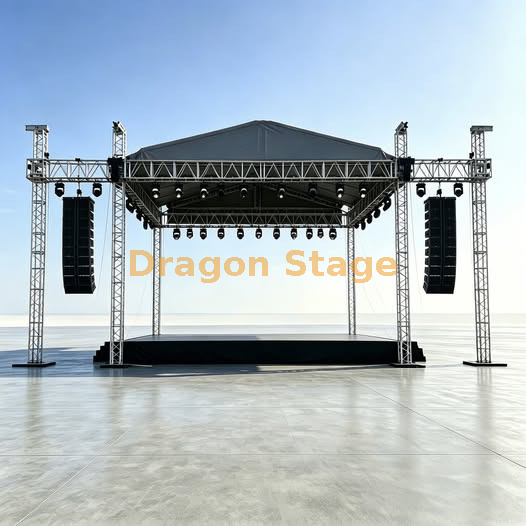

Dragon Stage
packing weight: 2050kg
packing volume: 12cbm
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs | |||
2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs | |||
2.00 m | 50×3.0 | CS389×389 | 2pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
beam cube | Spigot cube 389x389 | 0pcs | ||||||
Frame Tower | Spigot Sleeve Block S | 4pcs | ||||||
Steel Base S | 4pcs | |||||||
Top Section S | 4pcs | |||||||
Manual hoist,BA05 2Tons | 4pcs | |||||||
Spigot Hinge Section,Height 1m | 4pcs | |||||||
Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
Long outrigger | 16pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 2 sets | 1.20 m | 50×3.0 | CS289×289 | 2pcs | |||
8.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
2.00 m | 50×3.0 | CS289×289 | 1pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
1.20 m | 50×3.0 | CS289×289 | 4pcs | |||||
6.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||
2.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
1.20 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
Connect plate with clamp | 2pcs | |||||||
Single clamp | 12pcs | |||||||
Double clamp | 8pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 179.36 | 1pcs | ||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 0pcs | |||
2.00 m | 50×3.0 | CS389×389 | 2pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
7.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 2pcs | |||||
Wings Tower | Spigot Sleeve Block S | 2pcs | ||||||
Steel Base S | 2pcs | |||||||
Top Section S | 2pcs | |||||||
Manual hoist,BA05 2Tons | 2pcs | |||||||
Spigot Hinge Section,Height 1m | 2pcs | |||||||
Fibre sling,BA04,2 tons 3m | 2pcs | |||||||
Long outrigger | 8pcs | |||||||
Truss Accessory | Conical coupler & Safrty clip & pin | whole set |
packing weight: 2100kg
packing volume: 13.5cbm
Item | Specification | Quantity | |||
Aluminium assembly stage | topping:1x2m | wooden | 33 pcs | ||
1m stage brace | 44 pcs | ||||
2m stage brace | 36 pcs | ||||
stand with extendable tube | 48 pcs | ||||
Stage adjustable base | 48 pcs | ||||
Stage Stair | wooden topping | total | 8 | steps | 2 pcs |

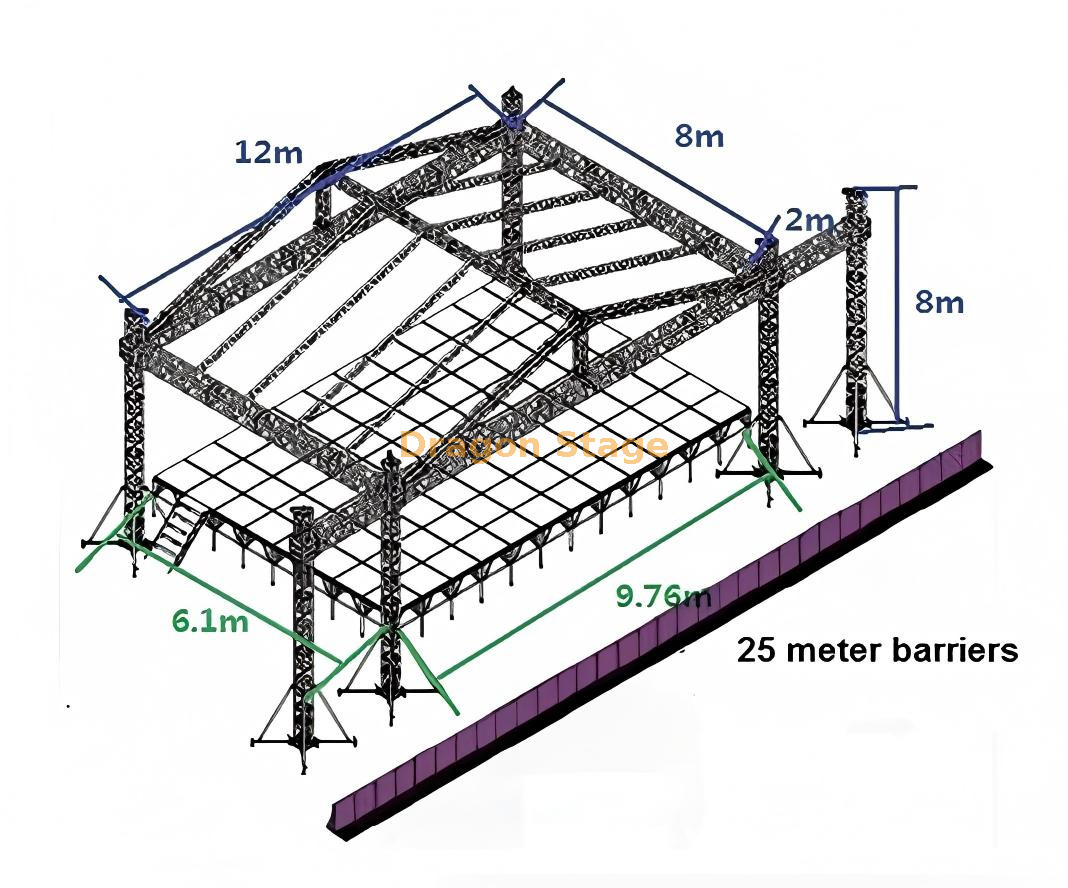

Length: 12m
Width: 8m
Height: 8m
The roof truss should have a sturdy and modular design to support lighting, sound equipment, banners, and other elements essential for the concert. Ensure that the truss system is made of durable materials, such as aluminum, and is designed to withstand outdoor conditions.
Additional Features:
Speakers Wings: Add 2 speakers wings, each extending 2 meters from the main truss structure. These wings provide space for speakers and additional equipment.
Length: 11m
Depth: 6m
Height: Adjustable from 1.2m to 1.6m
The stage podium should be spacious enough to accommodate performers and equipment while providing flexibility in height. The adjustable stairs make it easy for performers to access the stage, and the range of height adjustment caters to different event requirements.
Additional Features:
Stairs: Include 2 stairs on either side of the stage for access. Ensure that the stairs are stable, and the height is adjustable within the specified range.
Safety: Prioritize safety in the design and construction of both the roof truss and stage podium. This includes load-bearing capacity, stability, and compliance with safety standards.
Weather Resistance: Use weather-resistant materials and finishes for both the roof truss and stage podium, as outdoor events are exposed to varying weather conditions.
Engineering Approval: Work with a qualified structural engineer to ensure that the designs meet all structural requirements and local building codes.
Assembly and Disassembly: Design the structures to be modular for easy assembly and disassembly, especially considering the time constraints of event setups.
Accessibility: Ensure that the stage podium is accessible for performers with the inclusion of stairs and adjustable height features.
Professional Assistance: Engage with experienced event production professionals who can assist in the planning, setup, and execution of the concert stage and truss system.
Always consult with professionals in event production and structural engineering to ensure the safety and success of your music concert setup.
packing weight: 2050kg
packing volume: 12cbm
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs | |||
2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs | |||
2.00 m | 50×3.0 | CS389×389 | 2pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
beam cube | Spigot cube 389x389 | 0pcs | ||||||
Frame Tower | Spigot Sleeve Block S | 4pcs | ||||||
Steel Base S | 4pcs | |||||||
Top Section S | 4pcs | |||||||
Manual hoist,BA05 2Tons | 4pcs | |||||||
Spigot Hinge Section,Height 1m | 4pcs | |||||||
Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
Long outrigger | 16pcs | |||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
Roof Pillar | 2 sets | 1.20 m | 50×3.0 | CS289×289 | 2pcs | |||
8.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
2.00 m | 50×3.0 | CS289×289 | 1pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
1.20 m | 50×3.0 | CS289×289 | 4pcs | |||||
6.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||
2.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
1.20 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
Connect plate with clamp | 2pcs | |||||||
Single clamp | 12pcs | |||||||
Double clamp | 8pcs | |||||||
roof canopy material:pvc, Blue Colour or customized. | 179.36 | 1pcs | ||||||
Item | Specification(squre truss) | Qty | ||||||
length | main tube(mm) | size(mm) | ||||||
2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 0pcs | |||
2.00 m | 50×3.0 | CS389×389 | 2pcs | |||||
1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
7.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
1.00 m | 50×3.0 | CS289×289 | 2pcs | |||||
Wings Tower | Spigot Sleeve Block S | 2pcs | ||||||
Steel Base S | 2pcs | |||||||
Top Section S | 2pcs | |||||||
Manual hoist,BA05 2Tons | 2pcs | |||||||
Spigot Hinge Section,Height 1m | 2pcs | |||||||
Fibre sling,BA04,2 tons 3m | 2pcs | |||||||
Long outrigger | 8pcs | |||||||
Truss Accessory | Conical coupler & Safrty clip & pin | whole set |
packing weight: 2100kg
packing volume: 13.5cbm
Item | Specification | Quantity | |||
Aluminium assembly stage | topping:1x2m | wooden | 33 pcs | ||
1m stage brace | 44 pcs | ||||
2m stage brace | 36 pcs | ||||
stand with extendable tube | 48 pcs | ||||
Stage adjustable base | 48 pcs | ||||
Stage Stair | wooden topping | total | 8 | steps | 2 pcs |
Length: 12m
Width: 8m
Height: 8m
The roof truss should have a sturdy and modular design to support lighting, sound equipment, banners, and other elements essential for the concert. Ensure that the truss system is made of durable materials, such as aluminum, and is designed to withstand outdoor conditions.
Additional Features:
Speakers Wings: Add 2 speakers wings, each extending 2 meters from the main truss structure. These wings provide space for speakers and additional equipment.
Length: 11m
Depth: 6m
Height: Adjustable from 1.2m to 1.6m
The stage podium should be spacious enough to accommodate performers and equipment while providing flexibility in height. The adjustable stairs make it easy for performers to access the stage, and the range of height adjustment caters to different event requirements.
Additional Features:
Stairs: Include 2 stairs on either side of the stage for access. Ensure that the stairs are stable, and the height is adjustable within the specified range.
Safety: Prioritize safety in the design and construction of both the roof truss and stage podium. This includes load-bearing capacity, stability, and compliance with safety standards.
Weather Resistance: Use weather-resistant materials and finishes for both the roof truss and stage podium, as outdoor events are exposed to varying weather conditions.
Engineering Approval: Work with a qualified structural engineer to ensure that the designs meet all structural requirements and local building codes.
Assembly and Disassembly: Design the structures to be modular for easy assembly and disassembly, especially considering the time constraints of event setups.
Accessibility: Ensure that the stage podium is accessible for performers with the inclusion of stairs and adjustable height features.
Professional Assistance: Engage with experienced event production professionals who can assist in the planning, setup, and execution of the concert stage and truss system.
Always consult with professionals in event production and structural engineering to ensure the safety and success of your music concert setup.
